90 Degree Silicone Elbow
Material: Silicone rubber + Fabric reinforcement
Working Temperatures: -60 °C ~ 260 °C
OEM/ODM: Available
Color: Blue/Black/Red/Green/Yellow/Pink/Orange, etc (Customizable color)

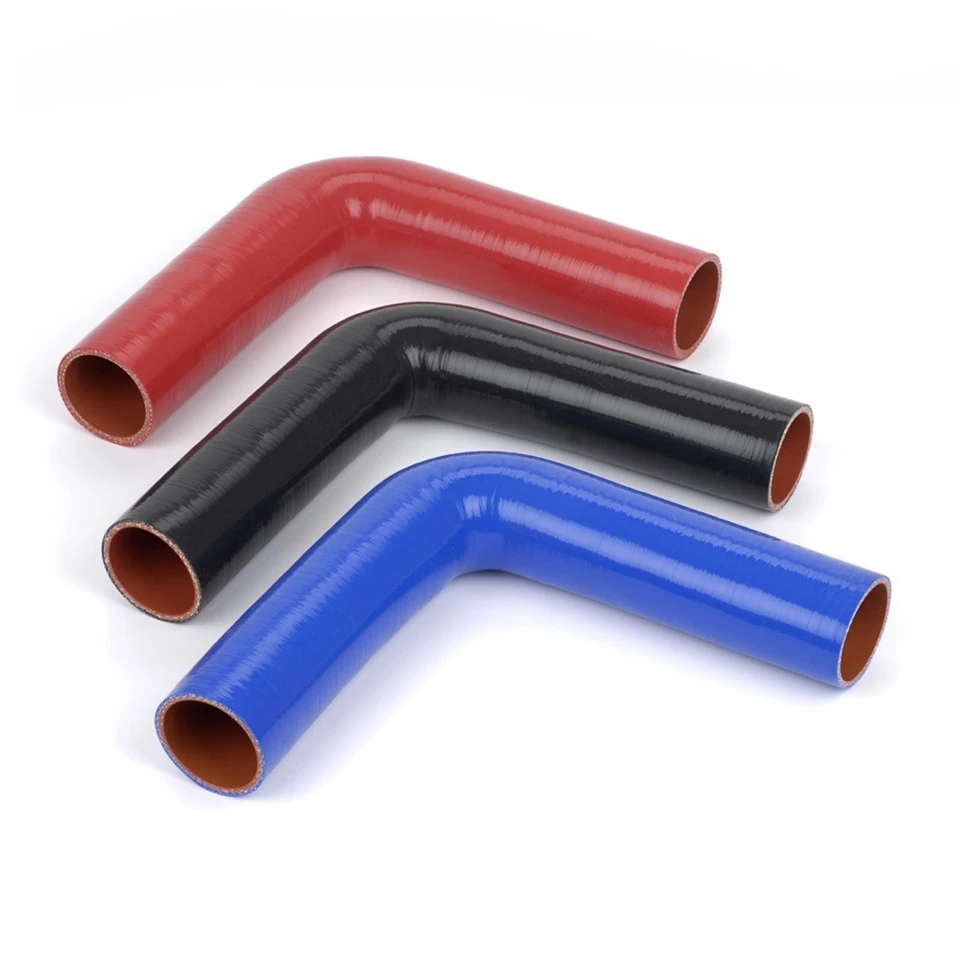

90-Degree Silicone Elbow Hose
Our 90-degree silicone elbow hose is designed for applications such as automotive, racing, construction machinery, and marine applications.
It is made of high-quality silicone and reinforced with polyester or aramid fabric, with excellent flexibility, durability, pressure resistance, and resistance to high and low temperatures.
The 90-degree silicone elbow hose is ideal for connecting pipes in narrow spaces that require right-angle turns, allowing gas and liquid to flow smoothly.
Elbow silicone hose refers to a silicone tube with a certain bending angle, generally 45, 90, 135, 180 degrees. The inner and outer layers are made of silicone rubber, and the middle reinforcement layer is 4ply Polyester / Ar amid fabric.
Compared with other hoses, silicone hoses are resistant to high temperature and high pressure, weather resistance, aging resistance, ozone and UV resistance, and environmental protection, good flexibility and durability. The color can be yellow, red, blue, black, or other custom colors.
|

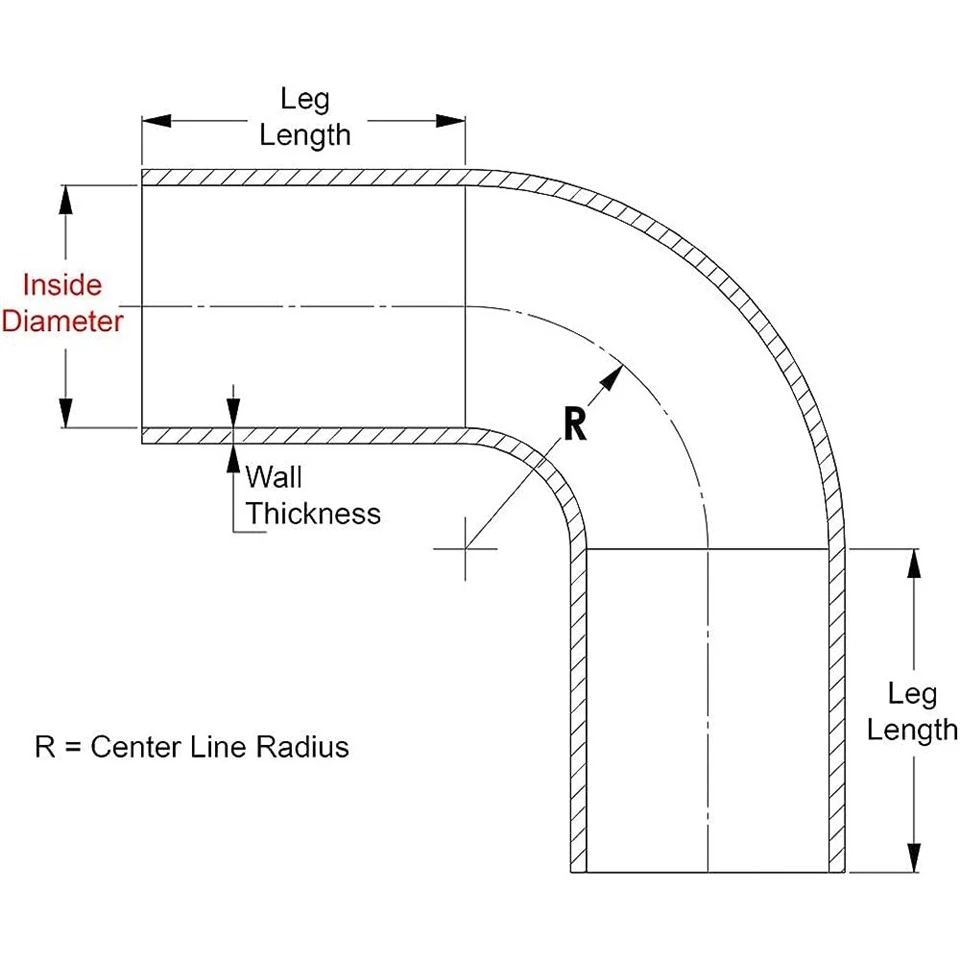

Code |
I.D. (mm) |
Layer |
Thickness (mm) |
Leg Length (mm) |
|
HD0625 |
6.5 |
4 |
4.5 |
250*250 |
|
HD0825 |
8 |
4 |
4.5 |
250*250 |
|
HD0925 |
9.5 |
4 |
4.5 |
250*250 |
|
HD1125 |
11 |
4 |
4.5 |
250*250 |
|
HD1325 |
13 |
4 |
4.5 |
250*250 |
|
HD1625 |
16 |
4 |
4.5 |
250*250 |
|
HD1925 |
19 |
4 |
4.5 |
250*250 |
|
HD2225 |
22 |
4 |
4.5 |
250*250 |
|
HD2525 |
25 |
4 |
4.5 |
250*250 |
|
HD2825 |
28 |
4 |
4.5 |
250*250 |
|
HD3025 |
30 |
4 |
4.5 |
250*250 |
|
HD3225 |
32 |
4 |
4.5 |
250*250 |
|
HD3525 |
35 |
4 |
4.5 |
250*250 |
|
HD3825 |
38 |
4 |
4.5 |
250*250 |
|
HD4125 |
41 |
4 |
4.5 |
250*250 |
|
HD4525 |
45 |
4 |
4.5 |
250*250 |
|
HD4825 |
48 |
4 |
4.5 |
250*250 |
|
HD5015 |
50 |
4 |
4.5 |
150*150 |
|
HD5115 |
51 |
4 |
4.5 |
150*150 |
|
HD5515 |
55 |
4 |
4.5 |
150*150 |
|
HD5715 |
57 |
4 |
4.5 |
150*150 |
|
HD6015 |
60 |
4 |
4.5 |
150*150 |
|
HD6315 |
63 |
4 |
4.5 |
150*150 |
|
HD6515 |
65 |
4 |
4.5 |
150*150 |
|
HD7015 |
70 |
4 |
4.5 |
150*150 |
|
HD7515 |
75 |
4 |
4.5 |
150*150 |
|
HD7615 |
76 |
4 |
4.5 |
150*150 |
|
HD8015 |
80 |
4 |
4.5 |
150*150 |
|
HD8515 |
85 |
4 |
4.5 |
150*150 |
|
HD9015 |
90 |
4 |
4.5 |
150*150 |
|
HD1115 |
11 |
4 |
4.5 |
150*150 |
|
HD1215 |
12 |
4 |
4.5 |
150*150 |
|
HD1415 |
14 |
4 |
4.5 |
150*150 |
|
HD1615 |
16 |
4 |
4.5 |
150*150 |
|
HD1815 |
18 |
4 |
4.5 |
150*150 |
|
HD1915 |
19 |
4 |
4.5 |
150*150 |
|
HD2015 |
20 |
4 |
4.5 |
150*150 |
|
HD2215 |
22 |
4 |
4.5 |
150*150 |
|
HD2515 |
25 |
4 |
4.5 |
150*150 |
|
HD2815 |
28 |
4 |
4.5 |
150*150 |
|
HD3015 |
30 |
4 |
4.5 |
150*150 |
|
HD3215 |
32 |
4 |
4.5 |
150*150 |
|
HD3515 |
35 |
4 |
4.5 |
150*150 |
|
HD3815 |
38 |
4 |
4.5 |
150*150 |
|
HD4015 |
40 |
4 |
4.5 |
150*150 |
|
HD4515 |
45 |
4 |
4.5 |
150*150 |
|
HD4815 |
48 |
4 |
4.5 |
150*150 |
|
HD5125 |
51 |
4 |
4.5 |
250*250 |
|
HD5425 |
54 |
4 |
4.5 |
250*250 |
|
HD5725 |
57 |
4 |
4.5 |
250*250 |
|
HD6025 |
60 |
4 |
4.5 |
250*250 |
|
HD6325 |
63 |
4 |
4.5 |
250*250 |
|
HD6525 |
65 |
4 |
4.5 |
250*250 |
|
HD6825 |
68 |
4 |
4.5 |
250*250 |
|
HD7025 |
70 |
4 |
4.5 |
250*250 |
|
HD7625 |
76 |
4 |
4.5 |
250*250 |
|
HD8025 |
80 |
4 |
4.5 |
250*250 |
|
HD8325 |
83 |
4 |
4.5 |
250*250 |
|
HD8925 |
89 |
4 |
4.5 |
250*250 |
|
HD10225 |
102 |
4 |
4.5 |
250*250 |
Why Choose HeroDura 90 Degree Silicone Elbow
.
|
Product Features |
Customer Benefits |
|
High Temperature Resistance |
Reliable performance from -60°C to +220°C |
|
Reinforced Multi-Ply Construction |
Increased burst strength and pressure capability |
|
Excellent Flexibility |
Easy installation in tight engine compartments |
|
UV & Ozone Resistant |
Extended service life in outdoor environments |
|
Smooth Inner Surface |
Improved airflow and fluid transfer efficiency |
|
Multiple Color Options |
Ideal for OEM branding projects |
HeroDura 90 Degree Silicone Elbow maintains excellent sealing performance under continuous heat cycles, engine vibration, and pressure fluctuations.
Our reinforced silicone elbow products are specifically designed for customers requiring dependable connections in turbocharged engines, intercooler systems, and coolant circuits.
FAQ
Q: What sizes of 90 Degree Silicone Elbow are available?
A: HeroDura manufactures 90 Degree Silicone Elbow products with inner diameters ranging from 13 mm to 152 mm. Customized dimensions are also available.
Q: Do you offer reinforced silicone elbow options?
A: Yes.
We provide 3-ply, 4-ply, and 5-ply reinforced silicone elbow solutions for high-pressure and turbocharged applications.
Q: Can I customize colors and logos?
A: Absolutely.
HeroDura supports Pantone color matching, logo printing, and private label packaging services.
Q: Are samples available before mass production?
A: Yes.
Sample approval is recommended before production to ensure dimensions and performance meet your project requirements.
Request Your Custom 90 Degree Silicone Elbow
Looking for a dependable 90 Degree Silicone Elbow Manufacturer?
Send your drawings, dimensions, or physical samples today.
HeroDura engineers will provide professional recommendations, prototype support, and a competitive quotation within 24 hours.
✔ Get a Free Quote
✔ Request Samples
✔ Send Your Drawing
