Soft Flexible Rubber Tubing
100% Brand new and high quality
Material: Pure Silicone
Color: Semi-Clear(milk white)
Clear tubing makes it easy to see flow of liquids inside.
Working Temperature: -50 to 200 degrees
Feature
Health and safety, high and low temperature resistance, good thermal stability, high mechanical strength, good tear and wear resistance, flexibility, good elasticity, Insulation.

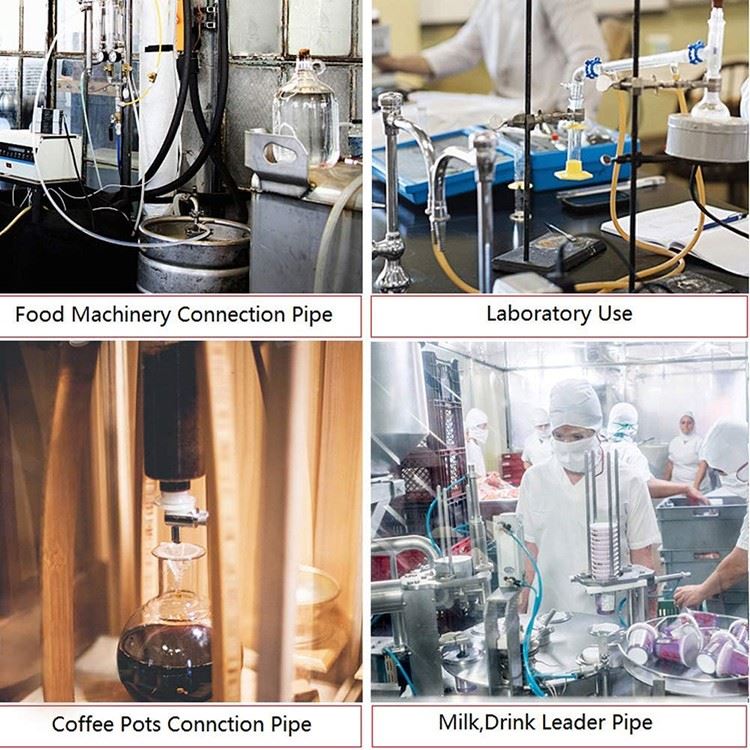

Application
Used for aquarium air tubing, kegerator, pumps, siphon, drain valve connections, filters, plumbing, drip irrigation, etc. Great for fluid handling, water pump transfer, peristaltic pumps, siphoning, draining, aquaponics , etc.
Its many suitable uses include pumps, shiphons, filters, AC and HVAC tubing, drain valve connections, filters, plumbing, drip irrigation, ponds and gardens, beer brewing, wine making, and more. Great for fluid handling, peristaltic pumps, siphoning, draining, aquaponics and water/oil change, etc. It is a great value for your money.
|
Part No. |
Hose I.D (mm) |
Hose O.D (mm) |
Thickness (mm) |
Length (m) |
|
HQ-PSH-01 |
1 |
2 |
0.5 |
200 |
|
HQ-PSH-02 |
2 |
4 |
1 |
200 |
|
HQ-PSH-03 |
3 |
5 |
1 |
200 |
|
HQ-PSH-04 |
4 |
6 |
1 |
200 |
|
HQ-PSH-05 |
5 |
7 |
1 |
100 |
|
HQ-PSH-06 |
6 |
8 |
1 |
100 |
|
HQ-PSH-07 |
7 |
10 |
1.5 |
100 |
|
HQ-PSH-08 |
8 |
11 |
1.5 |
100 |
|
HQ-PSH-09 |
9 |
12 |
1.5 |
100 |
|
HQ-PSH-10 |
10 |
14 |
2 |
100 |
|
HQ-PSH-11 |
12 |
16 |
2 |
100 |
|
HQ-PSH-12 |
16 |
21 |
2.5 |
100 |
Application
1.Environmentally friendly non-toxic, in line with the ISO/ASTM
2.High tear resistance, low shrinkage, good resistance to anti-aging performance.
3.Generally used in medical equipment, home appliances, aerospace, military,
4.Automobile manufacturing, electronic components, transformers, motors, etc...
Expanded Applications
|
Laboratory & Analytical Equipment Suction and transfer lines Instrument connection tubing Sampling and waste lines Flexibility allows easy routing inside compact lab devices without stressing connectors. |
Fluid Handling & Process Systems Low-pressure fluid transfer Peristaltic pump tubing (non-reinforced versions) Manifold and distribution lines Silicone tubing's smooth bore supports stable flow and easy cleaning. |
|
Vacuum & Low-Pressure Applications Although not the product name, many customers use soft silicone tubing in: vacuum pumps suction systems pressure sensing lines |
Instrumentation & Automation Pneumatic control lines Sensor protection sleeves Flexible interconnections between moving parts The tubing absorbs vibration and reduces mechanical fatigue. |
How to Select the Right Soft Silicone Rubber Tubing
|
1. Inner Diameter (ID) 2. Wall Thickness 3. Hardness (Shore A) 4. Temperature & Media |
|
Soft flexible silicone tubing
Silicone tubing is made of high-quality raw rubber which is pressed until a fine flexible silicone is obtained. The application of soft flexible silicone tubing is very common in many modern industries. They are used daily and can be adapted to any purpose. These pipes, in addition to being high quality, do not pollute the environment. Each pipe of this type is tested according to strict standards SGS, RoH, PHA. It is completely non-toxic. soft flexible silicone tubing has no smell or taste, and very often no color to monitor the movement of the contents. However, according to certain requirements, they can be made in appropriate colors.
Small soft flexible silicone tubing, soft flexible silicone tubing of medium or higher per mille can be found on the market, all depending on the use-value. Due to its flexible properties, you can be sure that it will not crack where it is bent. You can use this soft flexible silicone tubing over and over again and be sure that it will not wear out or wear out, as is the case with ordinary rubber hoses.
Therefore, they are soft, resistant to bending and there is no possibility of corrosion. They work under high pressure and the operating temperature of these pipes ranges from -60C to 200C. they are resistant to ozone, UV radiation, radiation. Their interior is very smooth so there is no possibility of clogging or weakening the flow due to the accumulation of particles. You will be shocked, and at the same time amazed at how many different professions this helpful tool can be used in. We'll mention here just some of them. They are used in transport, shipbuilding, telecommunications, instrumentation, aerospace, are found in most kitchen appliances, beauty salons, medical and pharmaceutical industries, and many other areas.
