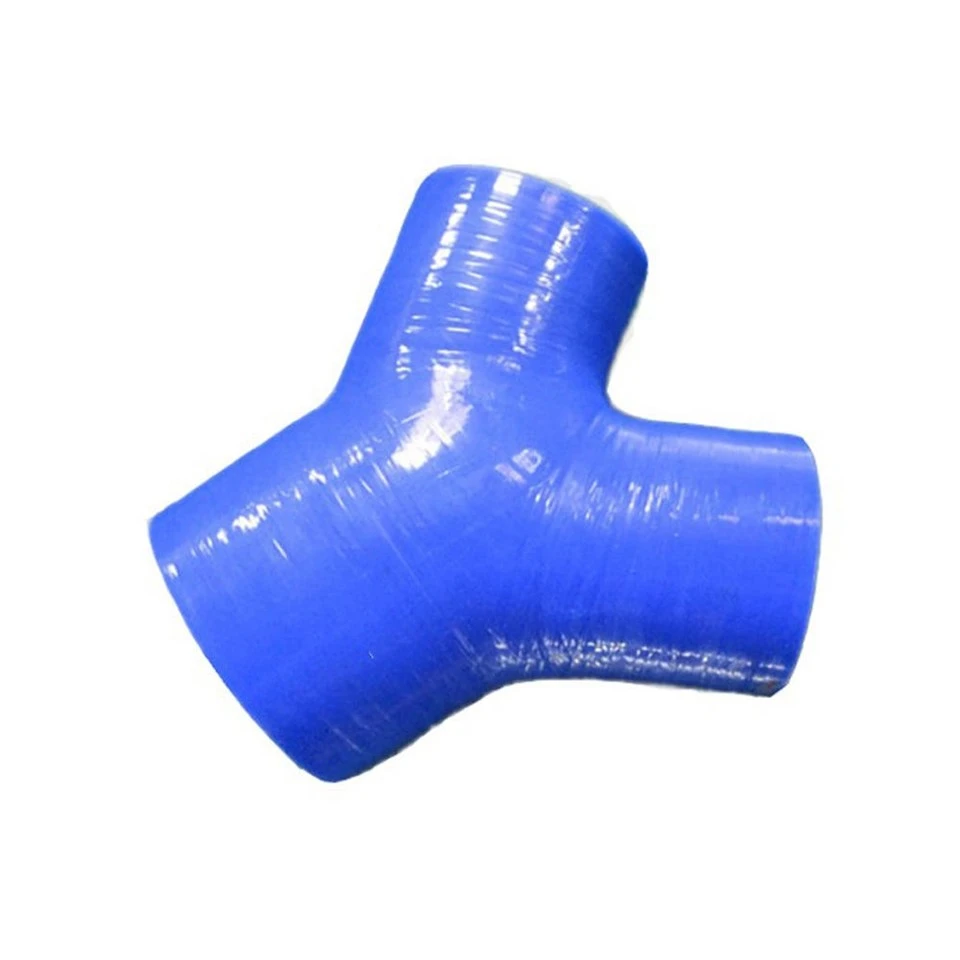

Y Shape Silicone Hose
Inner: 100% high-quality silicone
Cover: silicone
Reinforcement: 4ply Polyester/Aramid fabric with helix wire
Color: Black/Red/Blue/Green/Yellow
Temperature range: -40 °C ( -104 °F) to +220 °C (+428 °F)
Working Pressure: 0.3-1.2 MPA
Standard: SAE J20 specification
Corrugated silicone hose can use a variety of connectors and buckles, flexible production and diversified manufacturing. Small-diameter hoses, medium- and large- diameter hoses are common in the market. Each specification has different usage and application areas. The scope of use is also very wide, including pipeline systems, medical equipment, construction projects, and industrial applications.
|
Part No. |
Hose I.D (mm) |
Hose O.D (mm) |
Thickness (mm) |
Ply |
Length (mm) |
|
HQ-CFH-01 |
8 |
18 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-02 |
10 |
20 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-03 |
12 |
22 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-04 |
14 |
24 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-05 |
18 |
28 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-06 |
20 |
30 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-07 |
22 |
32 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-08 |
25 |
35 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-09 |
28 |
38 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-10 |
30 |
40 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-11 |
32 |
42 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-12 |
35 |
45 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-13 |
38 |
48 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-14 |
40 |
50 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-15 |
42 |
52 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-16 |
45 |
55 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-17 |
48 |
58 |
5 |
4 |
350 / 500 / Customized |
|
HQ-CFH-18 |
50 - 152 |
60 - 162 |
5 |
4 |
350 / 500 / Customized |
In order to show how widely silicone hoses are used, here are some common application areas of silicone hoses.
- Chemical industry: Since silicone corrugated hoses can withstand high temperature and high pressure and have good corrosion resistance, they are widely used in the connection of various pipelines, such as the transportation of chemical reagents, acid and alkali liquids, etc.
- Pharmaceutical industry: Silicone corrugated hoses are non-toxic, odorless, and medical grade.They are widely placed in areas that are easily exposed to medicines and foods during the transportation process, such as liquid medicine delivery pipelines and clean workshop filling.
- Food industry: Silicone corrugated hose is made of food-grade silicone rubber, which is resistant to high temperature and grease, it is not easy to deform and does not produce secondary pollution. It is used for transportation and pipeline connections in food processing.
- Aviation industry: Silicone corrugated hoses are used in aircraft engines, pipeline connections, fuel tanks, fuel pumps and other parts to ensure the normal operation of the aircraft.
Silicone hoses have excellent properties such as high temperature resistance, cold resistance, and chemical corrosion resistance. The silicone hoses produced by our company are widely used in many industries, including machinery, medical, food, agriculture, and chemistry.
Our silicone hoses can also provide different specifications, colors, and customized services according to customer needs to meet specific application requirements. If you have any special requirements, feel free to contact us and we will give you a satisfactory solution immediately.
