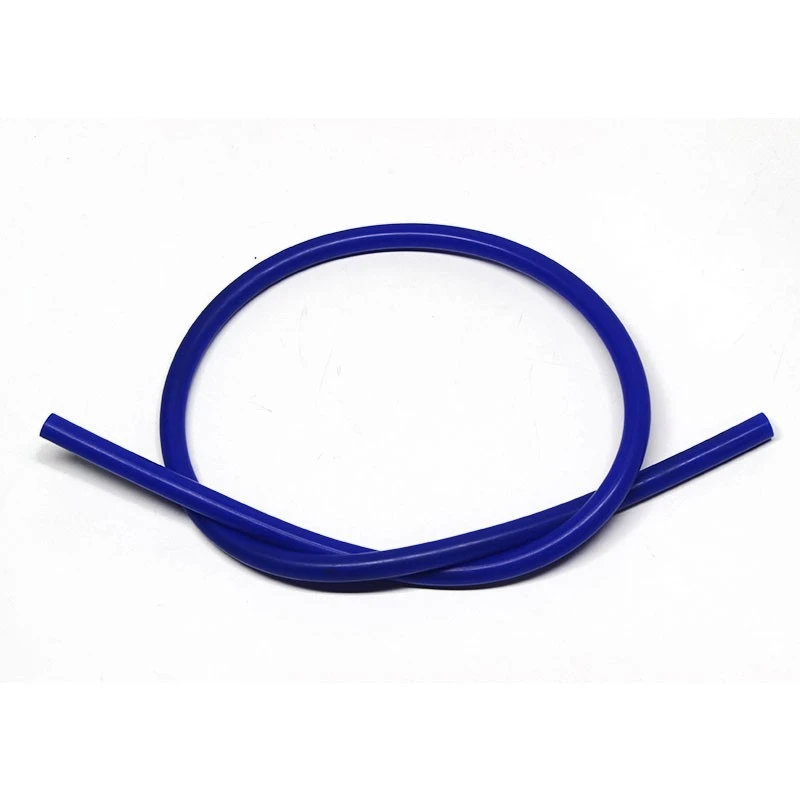

Reinforced Silicone Tubing
Outer Diameter Range: 13mm-42mm
Maximum Length: 100m
Operating Pressure: 45psi-150psi
Temperature Range: -40-220℃ Tubing Material: Platinum-cured silicone rubber, compliant with FDA, 3-A, and USP VI standards
Reinforcement Layer: Single or multiple polyester braided layers
Cleaning Methods: CIP, SIP, Autoclaving
Braided Silicone Hose Features
Good resilience, high-quality silicone raw materials ensure resilience and wear resistance, long-term use without deformation, material is soft.
Strong weather resistance, resistant to low temperature of -40℃ and high temperature of 220℃, no cracking at low temperature and no melting at high temperature.
Strong UV resistance, can be used outdoors for a long time, not easy to age.
High transparency, using highly transparent silicone raw materials, the conveyed liquid is visible, easy to control the work process.
Braided silicone hose is widely used in the food industry, medical device industry and industrial equipment field.
Batch traceable, manufactured in a clean environment, and suitable for the pharmaceutical industry.
Compared to steel wire reinforced hoses, this fiber-reinforced silicone tubing is lightweight, flexible, and easy to install in confined spaces.
Components are pressure-tested to ensure safety and reliability during use.
Autoclaveable for easy sterilization.
Customizable colors, lengths, connectors, packaging, printing markings, etc., are available upon request.
|
Item Code |
I.D |
O.D |
Wall Thickness |
Length |
|
mm |
mm |
mm |
m |
|
|
HD06 |
6 |
13 |
3.5 |
100 |
|
HD08 |
8 |
15 |
3.5 |
100 |
|
HD10 |
10 |
17 |
3.5 |
100 |
|
HD13 |
13 |
21 |
4 |
100 |
|
HD16 |
16 |
25 |
4 |
100 |
|
HD19 |
19 |
27 |
4 |
100 |
|
HD25 |
25 |
35 |
5 |
100 |
|
HD32 |
32 |
42 |
5 |
100 |
Applications of Braided Silicone Hose
|
Food and Beverage Industry: Used for conveying milk, juice, beer, drinking water, etc. Pharmaceuticals and Biopharmaceuticals: Filling hydraulic pharmaceuticals, plasma delivery, sterile liquid transfer, etc. Automotive Industry: Used as coolant hoses, heater hoses, turbocharger hoses, brake vacuum hoses, etc. Marine or Transportation Industry: For example, transporting liquids, oils, gases, and powders. Laboratory and Research: For example, transporting solutions, gases, resin or liquid chemical media. Industrial and Machinery Equipment: Compressed air systems, cooling water circulation, chemical delivery, vacuum equipment piping. |
|
About Braided Silicone Tubing
When your fluid transfer process requires to handle heavy pressure as well as high temperature simultaneously our reinforce braided silicone tubing offer excellent solution for that. As per your requirement, HeroDura Silicone Company supply premium quality braided hose and reinforce silicone rubber tubing at very competitive price. It is designed, engineered and made with high performance industry and application in mind.
Our reinforced braided silicone tubes offer excellent durability and flexibility in a wide variety of applications, such as medical and dental equipment, laboratory uses, hot fill systems, beverage and dairy service, appliances, deionized water transfer, thermal protection and electrically-associated equipment. We can offer both platinum and peroxide cured hoses to match your specific needs. This particular product is available with an inner diameter from 0.3mm - 59mm.
Hot Tags: reinforced silicone tubing, China reinforced silicone tubing manufacturers, suppliers, factory
