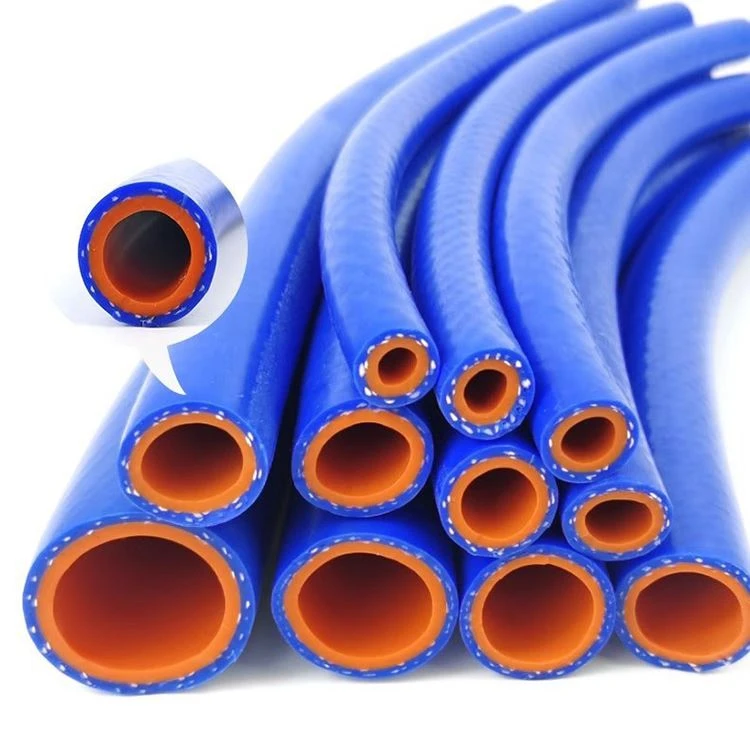

3/4 Inch Silicone Hose
Temperature Range:- 65 deg. F to + 350 deg. F (177 deg. C)
Hose Inside Diameter: 3/4" (19mm)
Hose Outside Diameter: 1" (25mm)
Bend Radius: 3"
Max. Working Pressure Rating: 70 psi
Hose Length: Sold per feet
Wall Thickness: 3mm
UV and ozone resistant
Silicone Heater Hoses Sizes
Customizable, if you do not find the size you need, please contact us

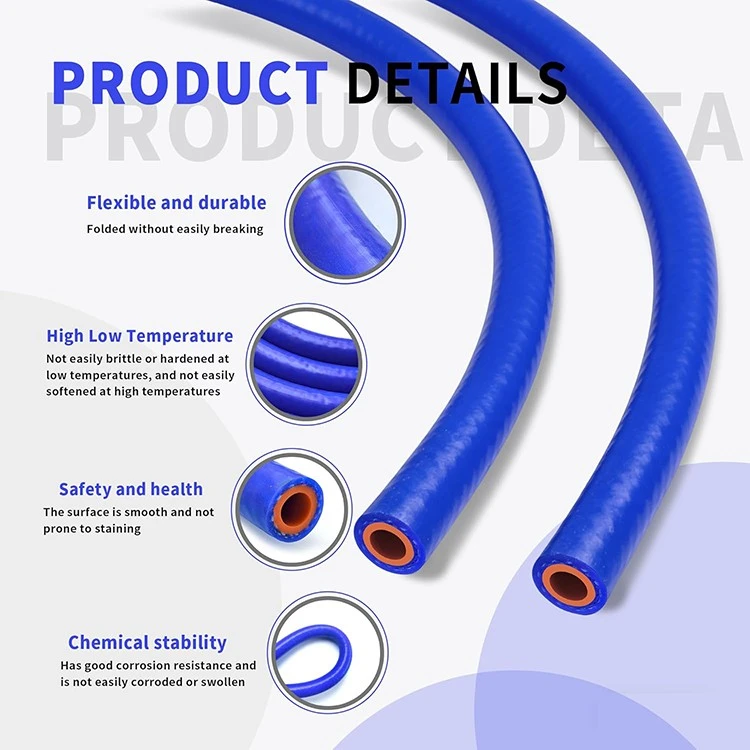

Features of Silicone Heater Hose:
1.100% silicone material + aramid or polyester reinforcement layer, durable and high temperature resistant, suitable for radiators, heaters, and other coolant delivery hoses.
2. Meet the requirements of SAEJ20R3 Class A specifications. Resistant to cracking, cracking, and aging
3. Able to withstand temperatures from -60° to 260°. Remains flexible even at low temperatures.
4. It can handle high-pressure environments without collapsing, making it suitable for a variety of automotive and industrial applications.
5. Maintains integrity under UV and ozone exposure, ideal for outdoor and exposed applications.
6. Available in a variety of sizes and colors black, red, blue, etc., and can be customized according to specific requirements.
7. One-year warranty service
8. Long service life and reduced maintenance costs over time.
9. Reinforcement: The number of hose layers can be customized, and polyester or aramid reinforcement layers can be selected to increase strength and kink resistance. Silicone hose has good gloss, is easy to clean, and has better chemical resistance than rubber hose.
10. Silicone hoses are suitable for water, coolants, and air, but not for oil. If oil resistance is required, fluorine lining material can be selected

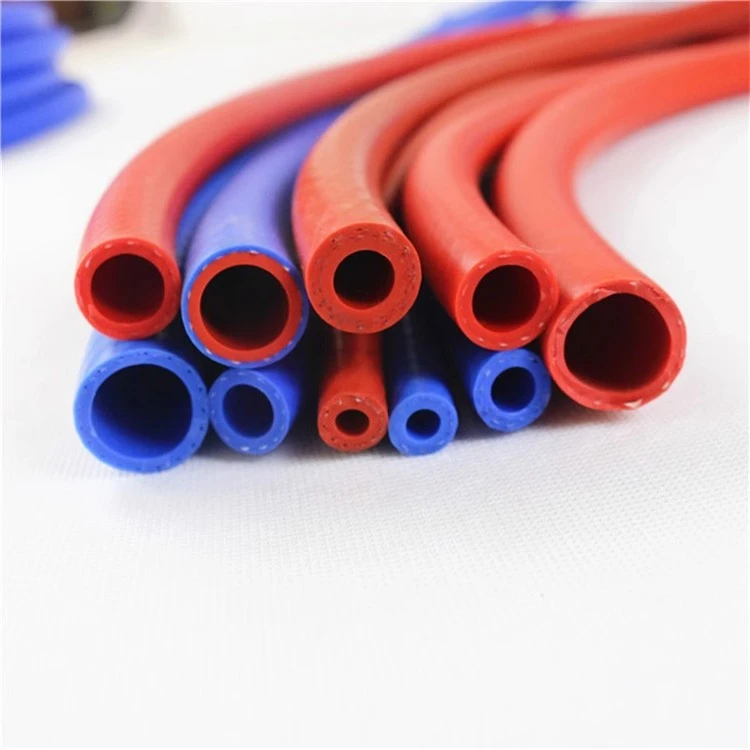

3/4" Reinforced Silicone Heater Hose Tubing
3/4" ID (19mm) Red high temp reinforced silicone heater hose (Sold per feet) meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications. Performance silicone is designed and engineered to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system.
Please Note: Silicone hose is NOT compatible with fuel or oil; however, it is compatible with water and anti-freeze such as coolant. Silicone heater hose is shipped in one single continuous roll instead of multiple single foot section.
Applications of Silicone Heater Hoses
|
Automotive Industry Industrial Equipment Heavy Trucks and Off-Road Vehicles Marine Applications Agricultural Machinery |
|
|
S.NO |
ID1 mm |
ID1 Inch |
WALL mm |
PAY |
|
1 |
8 |
5/16 |
3.5-4.5 |
1-2 |
|
2 |
10 |
3/8 |
3.5-4.5 |
1-2 |
|
3 |
12 |
1/2 |
3.5-4.5 |
1-2 |
|
4 |
14 |
9/16 |
3.5-4.5 |
1-2 |
|
5 |
16 |
5-8 |
3.5-4.5 |
1-2 |
|
6 |
19 |
3-4 |
3.5-4.5 |
1-2 |
|
7 |
22 |
7/8 |
3.5-4.5 |
1-2 |
|
8 |
25 |
1 |
3.5-4.5 |
1-2 |
|
9 |
28 |
1 1/8 |
3.5-4.5 |
1-2 |
|
10 |
32 |
1 1/4 |
3.5-4.5 |
1-2 |
Heat Resistance Flexible Braided Silicone Heater Hose
As a leading silicone heater hose manufacturer in China, we focus on providing high-quality silicone heater hoses to meet the stringent requirements of industries such as automobiles, trucks, and construction machinery.
Our hoses are well-designed and made of high-quality silicone materials to ensure excellent temperature resistance, durability, and flexibility in extreme temperature environments.
Our products comply with strict product quality standards from ISO 9001 and IATF 16949.
The Heater silicone hose meets the requirements of SAEJ20R3 Class A. Capable of withstanding temperatures from -60° to 260°.
