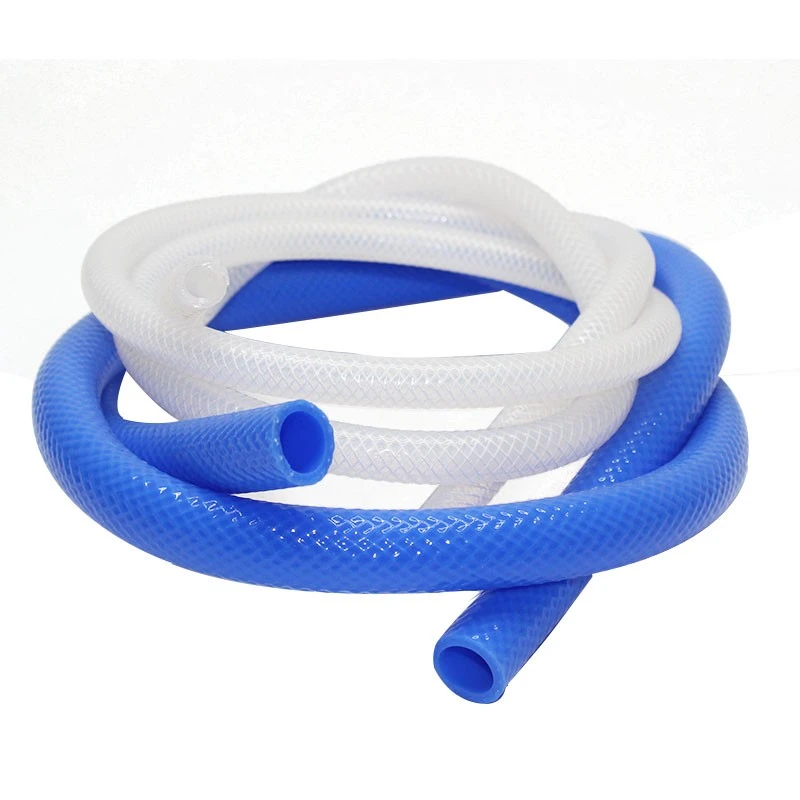

Braided Silicone Tubing
Material: Silicone raw material, Polyster
Color: Customized
Hardness: 70A
Certification: FDA, ROSH, SGS
Feature: Environment friendly, non-toxic, tasteless, Safe and reliable
Application
Food Processing Equipment
Pharmaceutical & Bio Pharma Industries
Aerospace & Military Industries
Automotive Electrical Industries
Minor Appliances Heater Tubing's

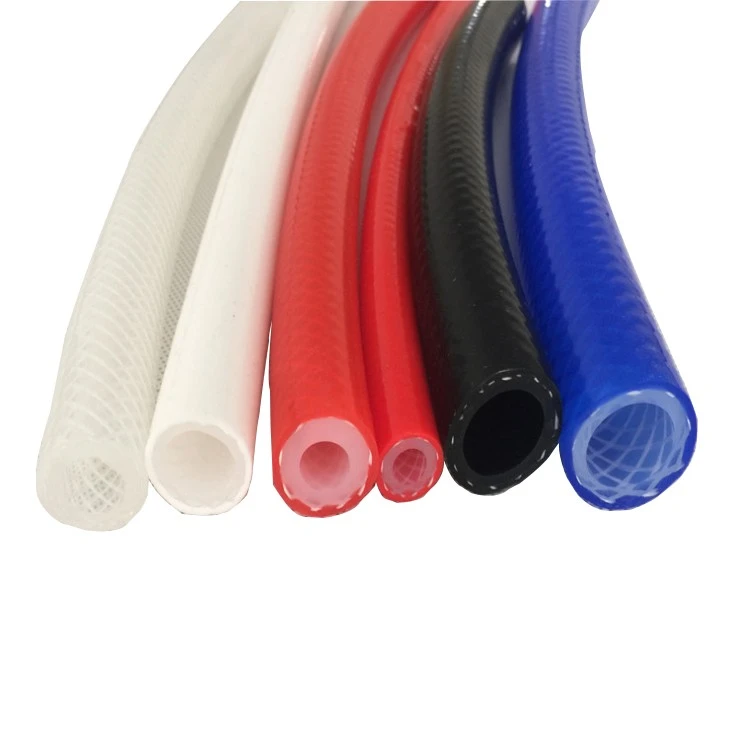

Our reinforced braided silicone tubes offer excellent durability and flexibility in a wide variety of applications, such as medical and dental equipment, laboratory uses, hot fill systems, beverage and dairy service, appliances, deionized water transfer, thermal protection and electrically-associated equipment. We can offer both platinum and peroxide cured hoses to match your specific needs. This particular product is available with an inner diameter from 0.3mm - 59mm.

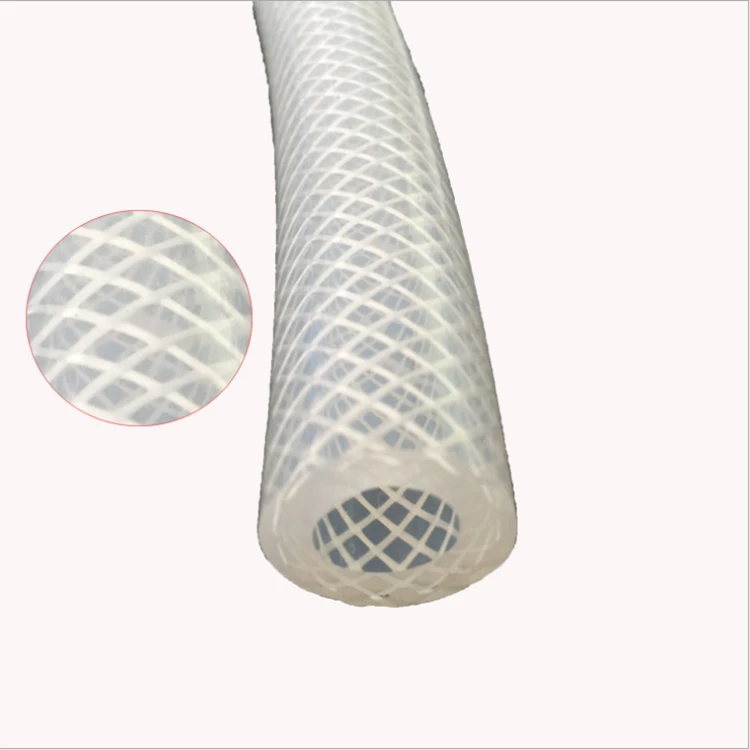

Braided Silicone Tube Description
1).Universal silicone braided tube is suitable for applications that do not require high pressure hose or high compound purity level.
2). The excellent heat resistance and flexibility of silicone rubber means that silicone tubing can be used on most home appliances and workshop or hobby applications
3. Medical and food grade tubing will not react in any way with sensitive drugs, food ingredients or body tissues and liquids, which can be sterilized in a standard autoclave. It also has a surface quality that resists build-up of internal transport materials.
Platinum Cured Braided Silicone Tube
Our platinum cured, braided silicone hoses are the ideal product for use in highly demanding applications. This product is transparent in design, non-toxic and also features no peroxide by-products.
Peroxide Cured Braided Silicone Tube
The peroxide cured option is typically cheaper than the platinum cured alternative. However, it still offers many of the same performance characteristics which makes it perfect for use in industrial applications.
|
Item Code |
ID |
Thickness |
OD |
Min. Bend Radius |
Working Pressure |
Burst Pressure |
Vacuum |
||||||
|
(mm) |
(inch) |
(mm) |
(mm) |
(inch) |
(mm) |
(inch) |
(Bar) |
Psi |
(Bar) |
(Psi) |
(Bar) |
(Psi) |
|
|
HD-003 |
12.7 |
1/2'' |
5.20 |
23.1 |
0.91 |
39.0 |
9.9 |
144 |
29.8 |
433 |
0.91 |
13.23 |
|
|
HD-005 |
19.0 |
3/4'' |
5.20 |
29.4 |
1.16 |
54.0 |
8.3 |
120 |
24.8 |
359 |
|||
|
HD-006 |
25.4 |
1.00'' |
5.20 |
35.8 |
1.41 |
68.0 |
7.4 |
107 |
22.2 |
321 |
|||
|
HD-009 |
38.1 |
1.50'' |
5.20 |
48.5 |
1.91 |
112.0 |
5.7 |
83 |
17.2 |
250 |
|||
|
HD-012 |
50.8 |
2.00'' |
5.20 |
61.2 |
2.41 |
144.0 |
4.6 |
67 |
13.8 |
200 |
|||
|
HD-015 |
63.5 |
2.50'' |
5.20 |
73.9 |
2.91 |
181.0 |
3.8 |
55 |
11.3 |
164 |
|||
|
HD-022 |
76.2 |
3.0'' |
5.20 |
86.6 |
3.41 |
232.0 |
3.0 |
44 |
9.1 |
132 |
|||
|
HD-025 |
101.6 |
4.0'' |
5.20 |
112.0 |
4.41 |
367.0 |
1.9 |
27 |
5.6 |
82 |
|||
Why Choose Our Braided Silicone Hose
Wide Range of Hoses: We offer a comprehensive range of braided silicone hoses, including hydraulic hoses, stainless steel hoses, and custom-designed solutions.
Expertise: Our team of experienced engineers and technicians have the expertise and knowledge to design and manufacture high-quality hoses that meet each customer's unique requirements.
Quality Guarantee: We are committed to providing only the best products, and we guarantee the quality of our hoses.
Excellent Customer Service: Our customer service team is always available to answer any questions or concerns and to ensure a seamless and stress-free experience.
Competitive Pricing: We offer competitive pricing on all of our products, making it easy for our customers to get the hoses they need at a price they can afford.
