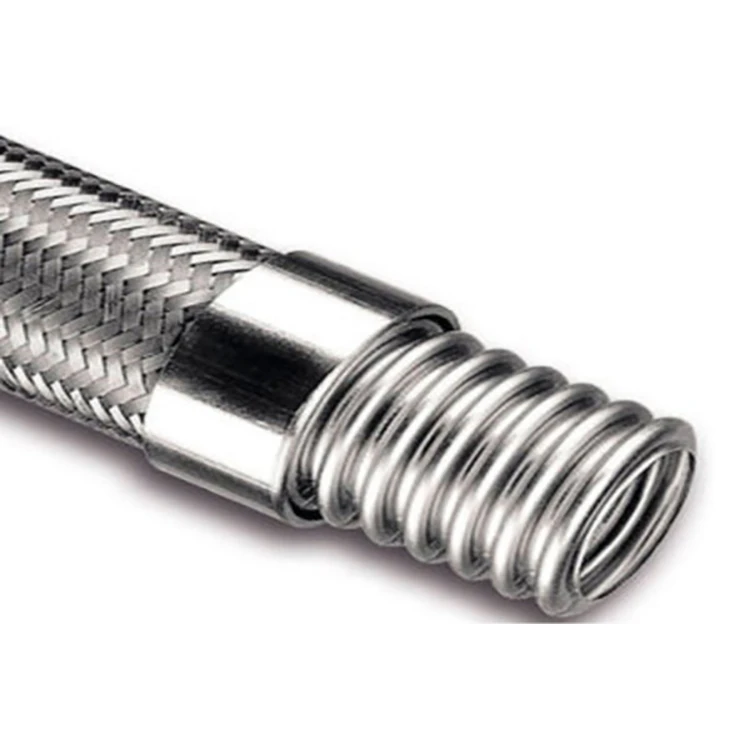

Corrugated Metal Hose
TUBE: 316L corrugated stainless steel , 321 corrugated stainless steel
COVER: 304SS braided stainless steel
TEMPERATURE: 316L SS Core -400°F to 800°F , 321 SS Core -400°F to 1500°F
WHY METAL HOSE
Metal hose assemblies are often used where rubber, plastic, PTFE, or other types of hose products are unsuitable. Reinforced corrugated metal hose provides for the transfer of liquids or gases, and is engineered to handle extreme temperature and pressure. Metal hose may be appropriate where other types of hoses are not, such as the transfer of extremely high temperature liquids or gases or transferring extremely cold (cryogenic) liquids.
|
SKU |
HOSE BORE I.D. (mm) |
HOSE BORE I.D. (in) |
WORKING PRESSURE (bar) |
|
HD013 |
13 |
1/2" |
80 |
|
HD019 |
19 |
3/4" |
64 |
|
HD025 |
25 |
1" |
50 |
|
HD032 |
32 |
1-1/4" |
40 |
|
HD038 |
38 |
1-1/2" |
30 |
|
HD051 |
51 |
2" |
28 |
|
HD063 |
63 |
2-1/2" |
24 |
|
HD076 |
76 |
3" |
18 |
|
HD102 |
102 |
4" |
16 |
|
HD127 |
127 |
5" |
12 |
|
HD152 |
152 |
6" |
10 |
Non-metallic Flexible Hoses
Flexible hoses are made by extrusion or vulcanization process. To add strength to the non-metallic flexible hoses, they are reinforced using a crisscrossed grid of fibers combined together through braiding, spiraling, or knitting. These reinforced hoses can be long enough. Basically, flexible hoses have four parts; inner tube, reinforcement, End fittings, and protective outer cover.
Flexible Metal Hoses
Metallic flexible hoses consist of corrugated tubing, braid, braid collars, and end-fittings as shown below:
Hot Tags: corrugated metal hose, China corrugated metal hose manufacturers, suppliers, factory
Previous

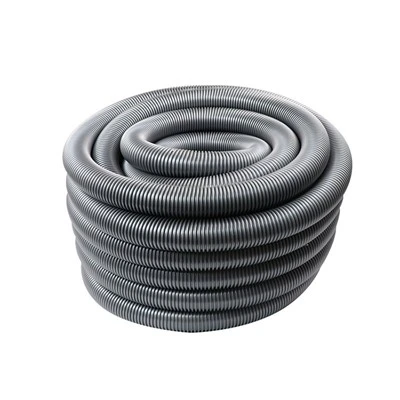

Vacuum Cleaner Suction HoseNext
