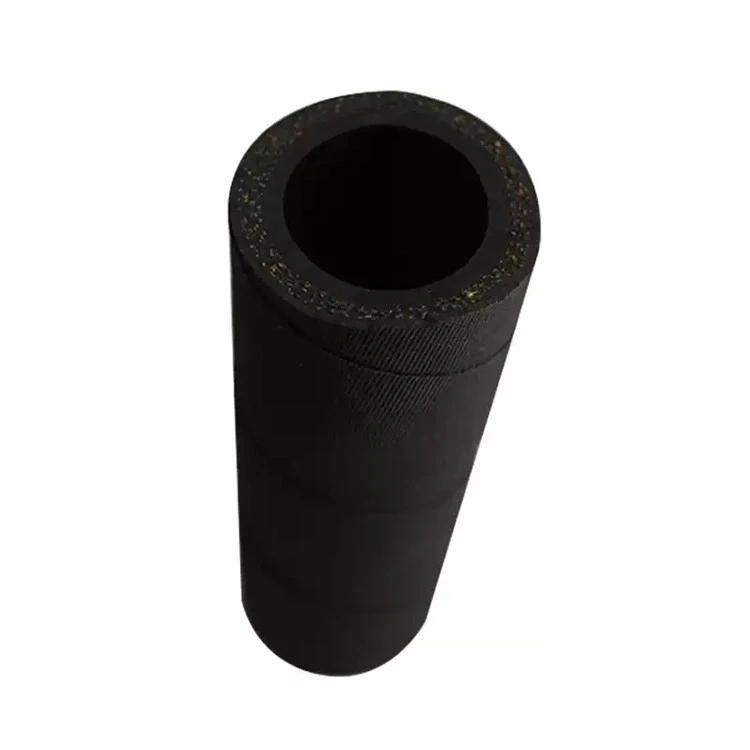

Sandblast Hose
Tube: Black static conducting NR (excellent abrasion resistance – 36mm³ rating)
Cover: Black pin-pricked conductive SBR/NR blend (abrasion and ozone resistant)
Reinforcement: High tensile textile cords – 2-ply construction
Temperature Range: -22ºF to 176ºF (-30ºC to 80ºC)
- Sand blasting hose, also known as sandblasting rubber hose for delivering quartz and mental sand, polishing, riding rust on metal surface and spraying cement. The sandblasting material is transported to the sandblasting gun through the rubber hose, which can clean and treat the surface of various workpieces and effectively remove the surface dirt and oxidized layer, so as to improve the quality and precision of the workpieces.
- Sand blast hose is often used to clean the surface of workpieces, such as removing the residual sand and high carbon layer on the surface of castings, as well as the weld seams of welded parts to eliminate rust.
- Of course, sandblasting rubber hose is also used for sandblasting operations. Of course, sandblasting rubber hose is also used for sandblasting operations, which are widely used in foundry, ship, steel structure, bridge, paint spraying and other industries.
The inner rubber layer of the sand blasting hose is made of synthetic rubber, use high-quality and high-strength cord as the reinforcing layer, which makes the hose pressure-resistant and kink-resistant, the outer rubber layer is made of abrasion-resistant natural or synthetic rubber. It can also be manufactured with anti-static rubber granting a complete discharge of static electricity.
Sandblasting Hose 170PSI
|
I.D |
O.D |
W.P |
B.P |
Layer |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
ply |
|
3/4" |
19.1 |
32.0 |
12 |
170 |
36 |
510 |
2 |
|
1" |
25.4 |
38.4 |
12 |
170 |
36 |
510 |
2 |
|
1-1/4" |
31.8 |
47.2 |
12 |
170 |
36 |
510 |
2 |
|
1-1/2" |
38.2 |
55.0 |
12 |
170 |
36 |
510 |
4 |
|
2" |
50.8 |
69.8 |
12 |
170 |
36 |
510 |
4 |
|
2-1/2" |
64.0 |
83.6 |
12 |
170 |
36 |
510 |
4 |
|
3" |
76.0 |
99.2 |
12 |
170 |
36 |
510 |
6 |
|
4" |
102.0 |
126.4 |
12 |
170 |
36 |
510 |
6 |
|
5" |
127.0 |
151.4 |
12 |
170 |
36 |
510 |
6 |
|
6" |
152.0 |
177.6 |
12 |
170 |
36 |
510 |
6 |
Sandblasting Hose 300PSI
|
I.D |
O.D |
W.P |
B.P |
Layer |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
ply |
|
3/4" |
19.1 |
34.0 |
20 |
300 |
60 |
900 |
4 |
|
1" |
25.4 |
40.0 |
20 |
300 |
60 |
900 |
4 |
|
1-1/4" |
31.8 |
49.8 |
20 |
300 |
60 |
900 |
4 |
|
1-1/2" |
38.2 |
55.8 |
20 |
300 |
60 |
900 |
4 |
|
2" |
50.8 |
72.2 |
20 |
300 |
60 |
900 |
6 |
|
2-1/2" |
64.0 |
86.4 |
20 |
300 |
60 |
900 |
6 |
|
3" |
76.0 |
103.2 |
20 |
300 |
60 |
900 |
8 |
|
4" |
102.0 |
127.6 |
20 |
300 |
60 |
900 |
6 |
Use precautions for sand blast hose
- Due to the special working environment, the sand blast rubber hose is easy to be abraded and aged during the working process, so it needs to be inspected regularly and replaced in time when it is found to be abraded.
- The working temperature range of the sandblasting hose is limited,Normal work temperature range is -30℃ to +80℃, so avoid using it in exceed environments, working in environments that exceed the temperature range for a long time, which will shorten the life of the tube.
- Avoid exceeding the pressure resistance of the sand blast hose, prevent the hose rupture or damage due to high working pressure.
- Sand blasting rubber hose should be stored in a way that avoids sunlight and rain, grease contamination or medicine corrosion, and keep it dry and clean.
