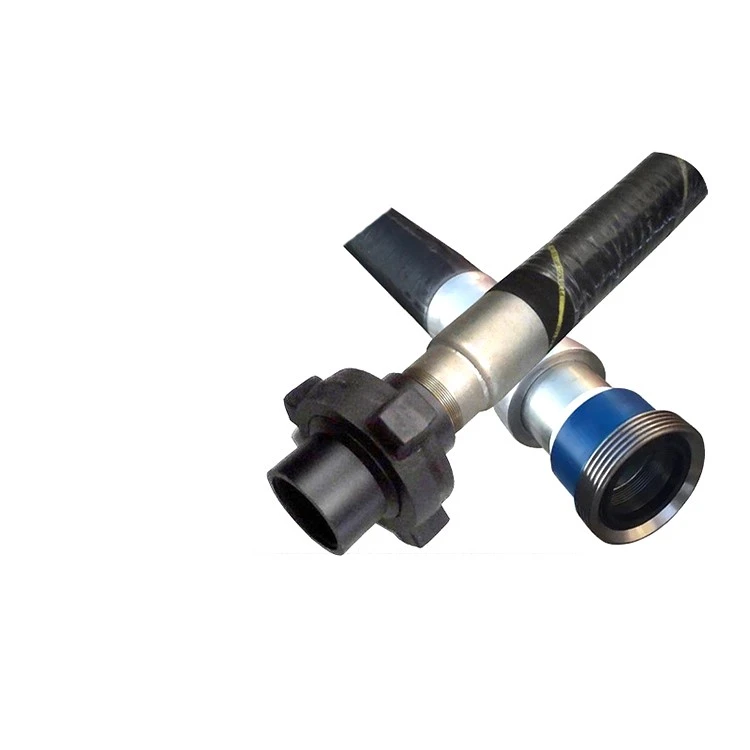

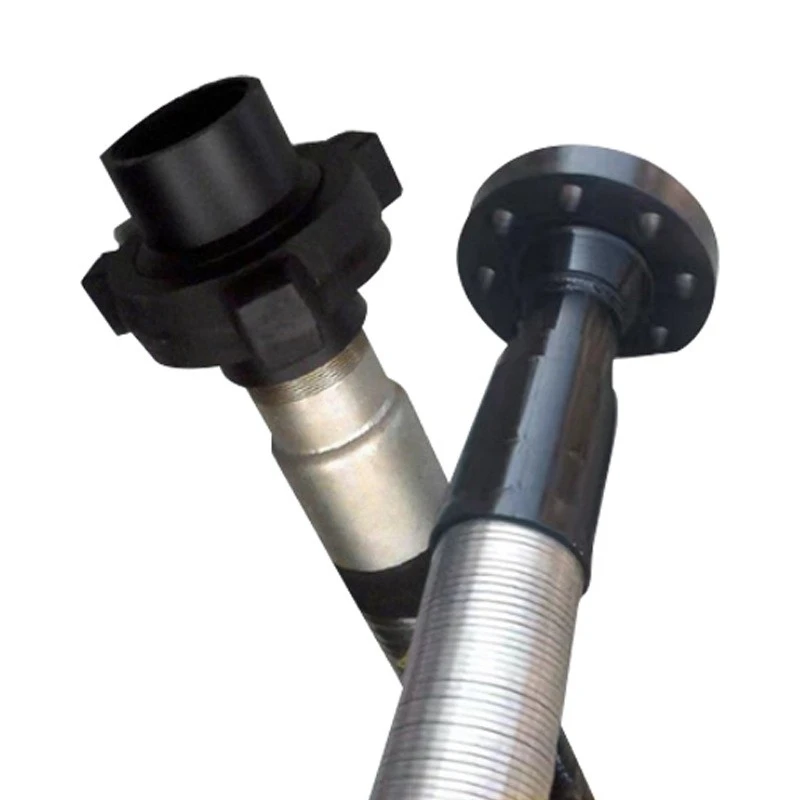

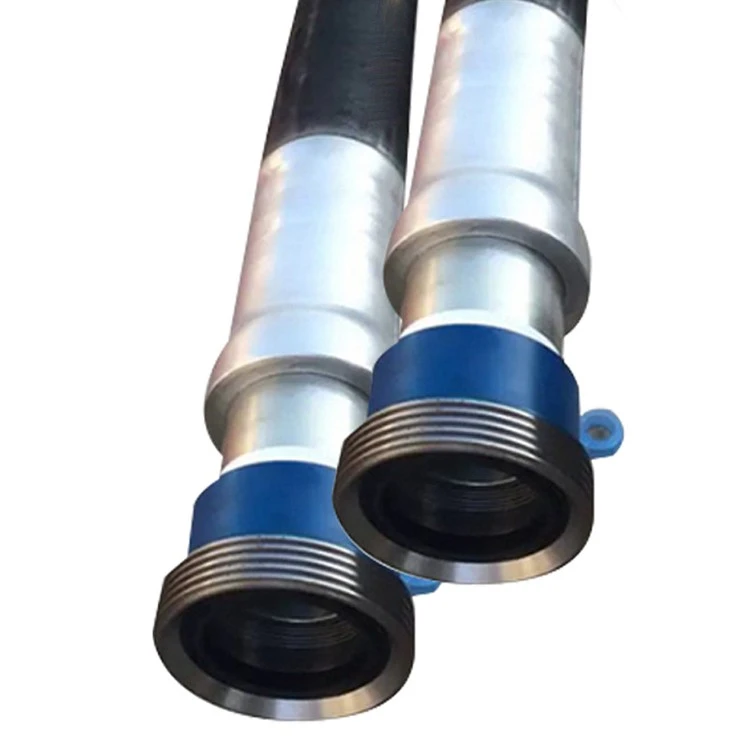

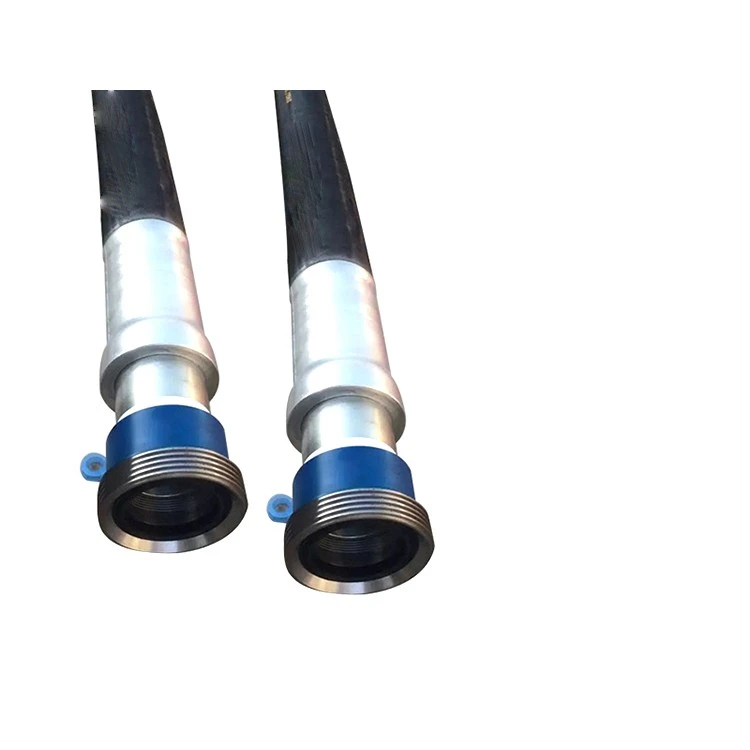

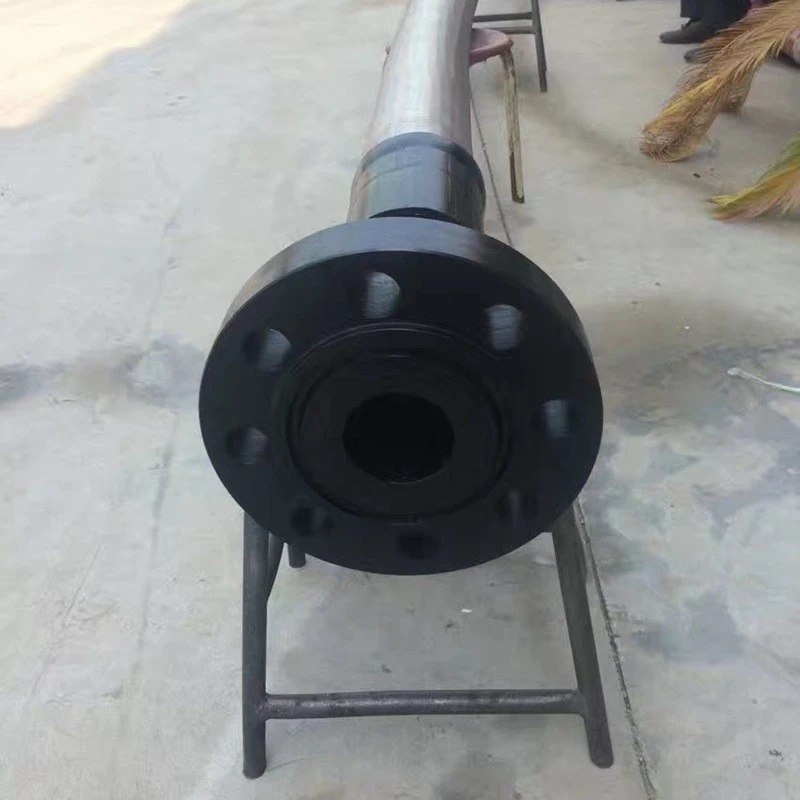

API 7K Drilling Hose
Core tube: Type C3 (Modified Nitrile). Black.
Pressure reinforcement: Multiple layers of textile fabric and steel cable.
Outer cover: Type C4 (Modified Nitrile). Black with gold stripe.
Design Factor:
Working Pressure: 5,00 psi
Test Pressure: 7,500 psi
Burst Pressure: 12,500 psi
API 7K Oil Well Drilling Hose
1.Purpose:
- suitable for rotary hose for flexible connection between the top of the drilling riser and the vertically movable water faucet in the oil drilling and mud delivery systems,and for the adjustment of installing error between the drilling pump line and the riser for the connection and vibration isolation.
- It is also suitable for delivering in large quantity at high pressure the water-based or oil-based mud with the min. aniline point at 66ºC pumped out of rotary drilling equipment.Moreover, it resists to corrosion from hydrogen sulfide and delivers water, oil,mud and other high-pressure media in borehole operation in oil field.
2.Construction:
- It made of inner sub or stainless steel armor inner tube ,carbon fiber reinforce sub,middle sub,steel wire reinforce sub ( steel catenarian line reinforce sub ),and carbon fiber outer sub.
- The product is classified into steel wire reinforcing type and steel link line reinforcing type.
- Applicable standard: API Spec7K SY/T5469
- API emblem practical license Numbers: 7K
Specification:
|
Rotary hose |
Rank |
Working pressure |
Test pressure |
Min. Bending Radius |
Max. Length |
Con. |
|
|
I.D.mm(in) |
O.D |
MPa(Psi) |
MPa(Psi) |
M |
|||
|
51(2") |
68.6 |
A |
11(1,500) |
21(3,000) |
800 |
30 |
TBG, LP, Union |
|
69 |
B |
14(2,000) |
28(4,000) |
||||
|
74.4 |
C |
28(4,000) |
56(8,000) |
850 |
|||
|
63.5(2-1/2) |
81.9 |
A |
11(1,500) |
21(3,000) |
900 |
||
|
82.3 |
B |
14(2,000) |
28(4,000) |
||||
|
87.7 |
C |
28(4,000) |
56(8,000) |
1,000 |
|||
|
76(3) |
95.2 |
A |
11(1,500) |
21(3,000) |
950 |
||
|
100.1 |
B |
14(2,000) |
28(4,000) |
||||
|
108.8 |
C |
28(4,000) |
56(8,000) |
1,050 |
|||
|
89(3-1/2) |
117.3 |
A |
11(1,500) |
21(3,000) |
1,000 |
||
|
119.5 |
B |
14(2,000) |
28(4,000) |
||||
|
122.8 |
C |
28(4,000) |
56(8,000) |
1,100 |
|||
|
102(4) |
128.4 |
A |
11(1,500) |
21(3,000) |
1,050 |
||
|
138.8 |
B |
14(2,000) |
28(4,000) |
||||
|
147.4 |
C |
28(4,000) |
56(8,000) |
1100 |
|||
|
127(5) |
150.0 |
A |
11(1,500) |
21(3,000) |
1,200 |
||
|
154.1 |
B |
14(2,000) |
28(4,000) |
||||
|
163.0 |
C |
28(4,000) |
56(8,000) |
1,300 |
|||
|
152(6) |
180.0 |
A |
11(1,500) |
21(3,000) |
|||
|
185.0 |
B |
14(2,000) |
28(4,000) |
||||
|
196.0 |
C |
28(4,000) |
56(8,000) |
1,400 |
|||
|
51(2) |
75.0 |
D |
35(5,000) |
70(10,000) |
850 |
||
|
80.6 |
E |
52(7,500) |
105(15,000) |
900 |
|||
|
83.2 |
F |
70(10,000) |
950 |
||||
|
63.5(2-1/2) |
107.0 |
D |
35(5,000) |
70(10,000) |
1,000 |
||
|
110.0 |
E |
52(7,500) |
105(15,000) |
1,050 |
30 |
TBG, LP, Union |
|
|
114.0 |
F |
70(10,000) |
1,100 |
||||
|
76(3) |
120.0 |
D |
35(5,000) |
70(10,000) |
1,150 |
||
|
124.0 |
E |
52(7,500) |
105(15,000) |
1,100 |
|||
|
135.0 |
F |
70(10,000) |
1,150 |
||||
|
89(3-1/2) |
133.0 |
D |
35(5,000) |
70(10,000) |
1,100 |
||
|
146.5 |
E |
52(7,500) |
105(15,000) |
1,150 |
|||
|
153.0 |
F |
70(10,000) |
|||||
|
102(4) |
148.0 |
D |
35(5,000) |
70(10,000) |
1,100 |
||
|
156.3 |
E |
52(7,500) |
105(15,000) |
1,150 |
|||
|
165.0 |
F |
70(10,000) |
1,200 |
||||
