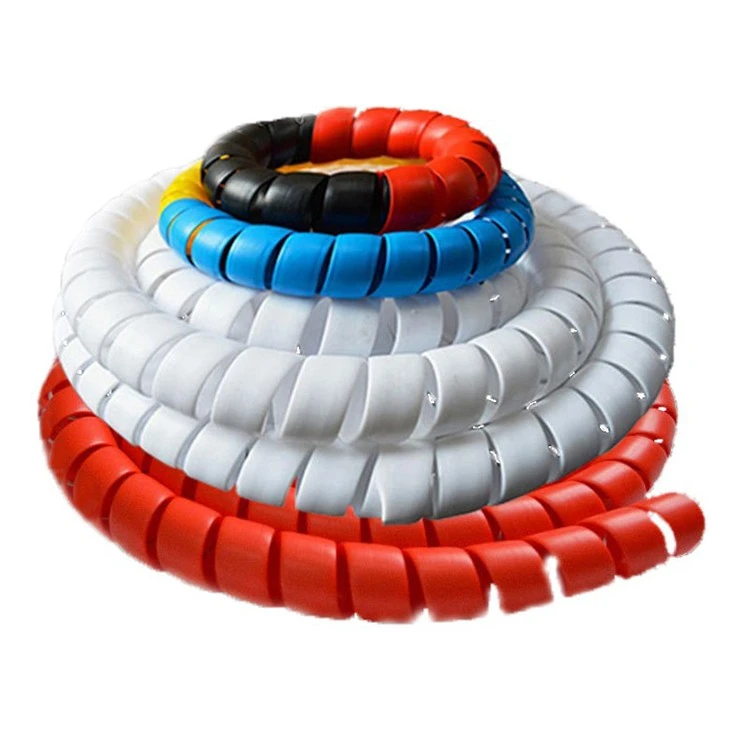

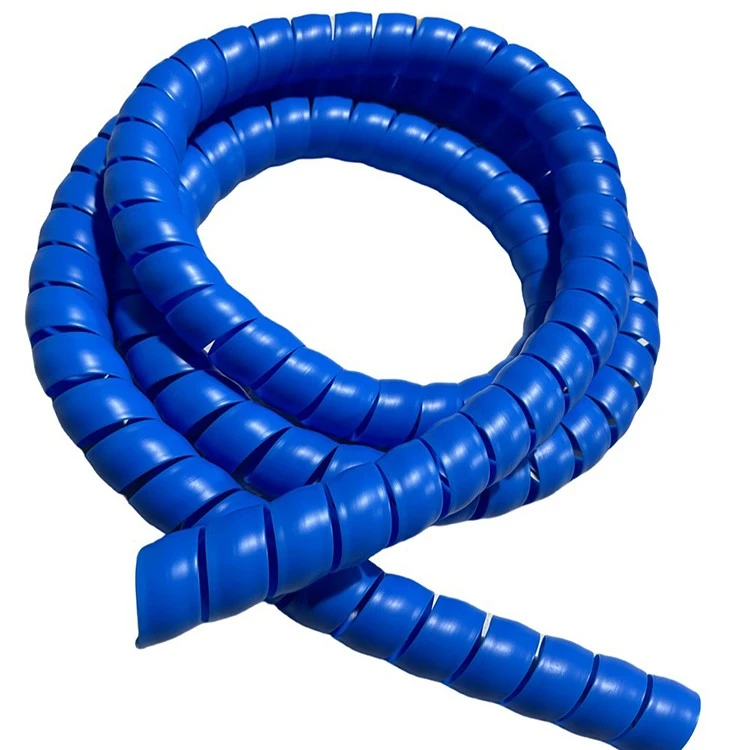

PP Spiral Guard
2. Size: 1.D of the spiral
Or hose O.D
Or layers and sizes of hydraulic hose
3. Roll Length: 2m/10m/50m roll
4. Application: For hose protector, Mining, equipment, forestry, agriculture, trucking, automotive
5. Temperature Range: -60°F to +210°F (-50°C to +100°C)

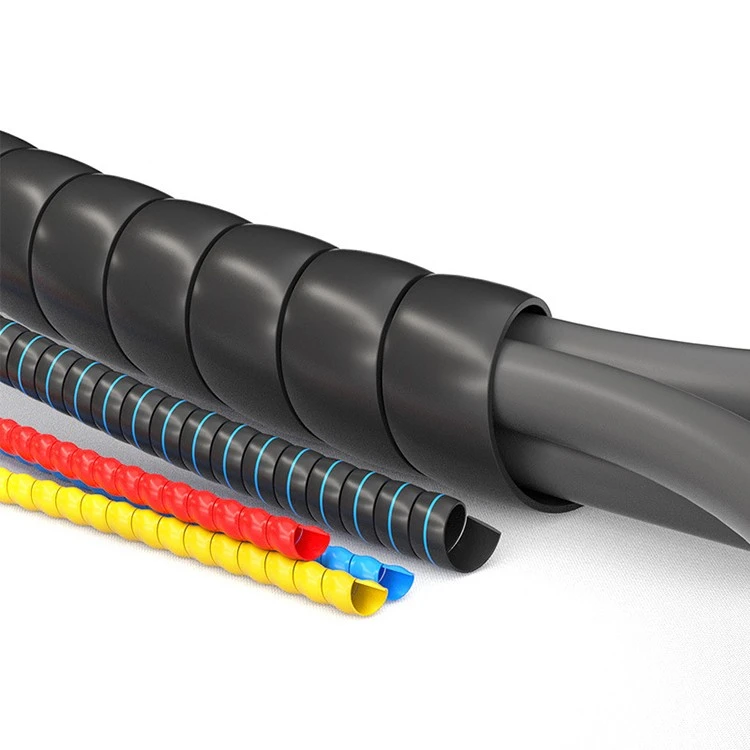

Features of Plastic Spiral Hose Protectors
- Wear-resistant and durable: Made of high-quality PP material, it has excellent wear resistance, extending its service life. Protects hoses from wear, crushing, cutting, and UV damage.
- Oil and acid/alkali resistant: PP material has excellent chemical corrosion resistance, is oil-resistant and easy to clean.
- Flexible installation: The unique spiral shape maintains good flexibility, allowing it to easily wrap around hoses of different diameters, adapting to various industrial applications.
- Heat dissipation and flame retardant: The spiral structure leaves gaps, which is conducive to heat dissipation of internal cables. PP materials with added flame retardants are also available on the market, achieving UL94 V-2 or higher flame retardant ratings.
- Multi-size and multi-color customized production: Available in various specifications according to hose diameter, and supports customized lengths and colors.
- Lightweight and environmentally friendly: The material is lightweight and easy to install, while also meeting environmental requirements and being reusable.
Product Specifications
|
Part No. |
Hose I.D (mm) |
Hose O.D (mm) |
Thickness (mm) |
Width (mm) |
Length (m/roll) |
Hose O.D Range (mm) |
|
HQ-SG-01 |
5 |
7.4 |
1.2 |
5 |
20 / 50 |
5 - 7 |
|
HQ-SG-02 |
6 |
8.4 |
1.2 |
6 |
20 / 50 |
6 - 8 |
|
HQ-SG-03 |
8 |
9.4 |
1.2 |
8 |
20 / 50 |
8 - 12 |
|
HQ-SG-04 |
10 |
13 |
1.3 |
10 |
20 / 50 |
10 - 14 |
|
HQ-SG-05 |
12 |
15 |
1.5 |
12 |
20 / 50 |
12 - 16 |
|
HQ-SG-06 |
14 |
17 |
1.5 |
14 |
20 / 50 |
14 - 18 |
|
HQ-SG-07 |
16 |
20 |
2 |
16 |
20 / 50 |
16 - 20 |
|
HQ-SG-08 |
18 |
22 |
2 |
18 |
20 / 50 |
18 - 22 |
|
HQ-SG-09 |
20 |
25 |
2.5 |
18 |
20 / 50 |
20 - 25 |
|
HQ-SG-10 |
22 |
27 |
2.5 |
18 |
20 / 50 |
22 - 27 |
|
HQ-SG-11 |
25 |
30 |
2.5 |
23 |
20 / 50 |
25 - 30 |
|
HQ-SG-12 |
28 |
34 |
3 |
24 |
20 / 50 |
28 - 32 |
|
HQ-SG-13 |
30 |
36 |
3 |
25 |
20 / 50 |
30 - 35 |
|
HQ-SG-14 |
32 |
38 |
3 |
25 |
10 / 20 |
32 - 38 |
|
HQ-SG-15 |
35 |
42 |
3.5 |
25 |
10 / 20 |
35 - 40 |
|
HQ-SG-16 |
38 |
45 |
3.5 |
28 |
10 / 20 |
38 - 43 |
|
HQ-SG-17 |
42 |
49 |
3.5 |
28 |
10 / 20 |
42 - 50 |
|
HQ-SG-18 |
45 |
52 |
3.5 |
28 |
10 / 20 |
45 - 60 |
|
HQ-SG-19 |
50 |
57.4 |
3.7 |
35 |
10 / 20 |
50 - 70 |
|
HQ-SG-20 |
60 |
68 |
4 |
38 |
10 / 20 |
60 - 80 |
|
HQ-SG-21 |
74 |
82 |
4 |
47 |
10 / 20 |
74 - 90 |
|
HQ-SG-22 |
80 |
89 |
4.5 |
50 |
10 / 20 |
80 - 100 |
|
HQ-SG-23 |
88 |
97 |
4.5 |
53 |
10 / 20 |
88 - 110 |
|
HQ-SG-24 |
100 |
110 |
5 |
58 |
10 / 20 |
100 - 140 |
|
HQ-SG-25 |
130 |
140 |
5 |
58 |
10 / 20 |
130 - 180 |
|
HQ-SG-26 |
150 |
162 |
6 |
69 |
2 |
150 - 210 |
|
HQ-SG-27 |
200 |
214 |
7 |
100 |
2 |
200 - 300 |
|
HQ-SG-28 |
280 |
294 |
7 |
100 |
2 |
280 - 350 |
Application

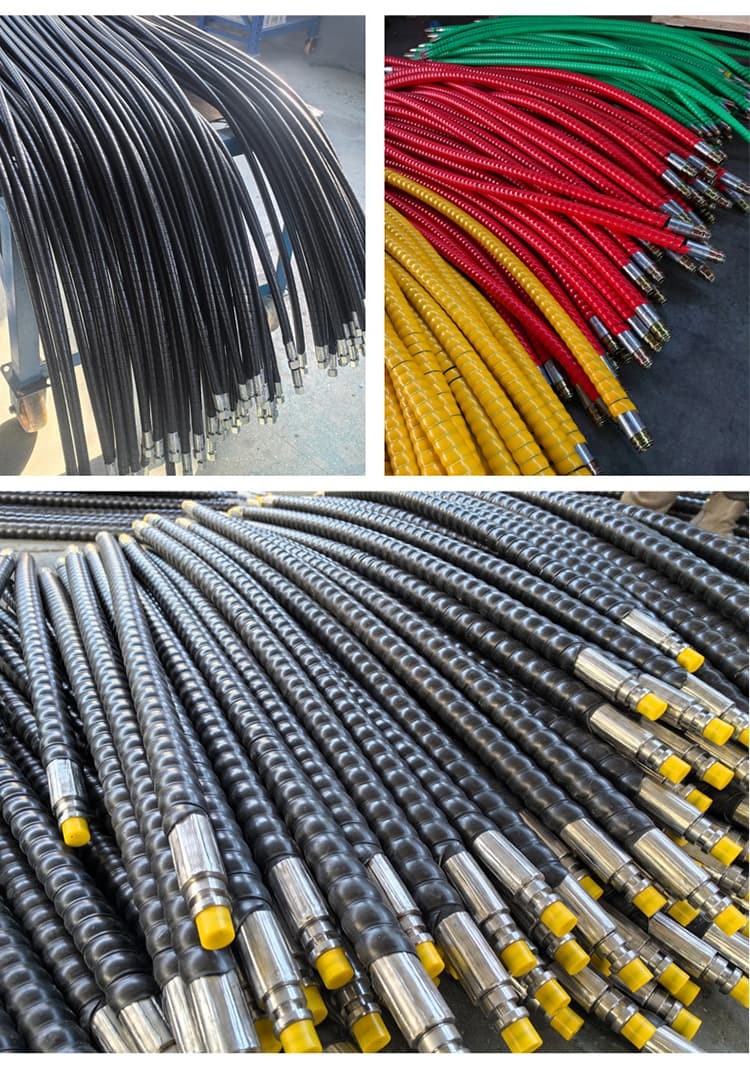

Widely used in excavators, loaders, road rollers, pavers, forklifts, cranes, dump trucks and other construction machinery and injection molding machine equipment. Mainly installed in the hydraulic hose, wire and cable products external. Its function is to enhance the hydraulic hose, wire and cable products internal wear, anti-static and UV resistance in a variety of harsh environments to play a security role. Installing spiral protection sleeve will not only improve aesthetics, and can extend the life of the product within 3 years. With the traditional metallic spring products, hose protective sleeve has ease of installation, and better wear resistance; Anti-aging, corrosion resistance can be strong; More excellent, more convenient, more environmentally friendly energy-saving effect.
