PVC Reinforced Hose
Material: Clear PVC with Braided Reinforcement
Temperature Range: -10°C to 60°C
Applications: Compressed Air, Water, Gas, Oil, and Chemicals
Sizes Available: From 1/4″ to 2″ (Internal Diameter), with varying lengths and pressure ratings (refer to size chart below)

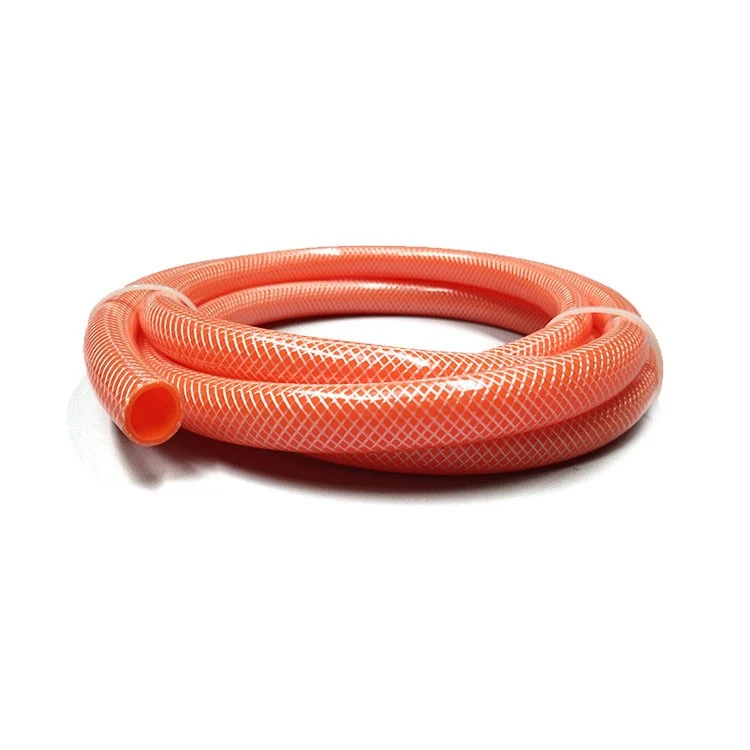

We use and recommend reinforced (braided) poly vinyl chloride (PVC) tubing (shown in picture) for passing tap water to and from our wort chiller. The embedded nylon braid strengthens the tubing and also prevents it from kinking. It's rated to 150-180F which is high enough for our use.
We do not recommend that vinyl tubing be used to transfer hot liquids that will eventually be consumed as most vinyl tubing is not food-grade approved nor is it rated for use up to the near boiling temperatures we will be using. In our experience off-flavours can also leech from the vinyl, especially when the tubing is new. This leeching increases at higher temperatures.
We recommend and use high temperature food-grade silicone tubing for anything that comes in contact with our brewing water or wort.
Custom PVC Braided Hose Wholesale
Material Type
We offer a selection of materials for your PVC braided hose, each designed to meet specific application needs. Whether you require enhanced flexibility, chemical resistance, or UV protection, we ensure the material is suitable for your operating conditions. The right material ensures durability and long-lasting performance in diverse environments.
Length
We understand that every project has its own space and distance requirements, so we offer PVC braided hoses in a range of custom lengths. Whether you need a short hose for compact machinery or a long hose for more extensive systems, we provide tailored lengths to optimize efficiency and flexibility in your setup.
Pressure Rating
We customize the pressure rating of your PVC braided hose to match your application's demands. Whether you're working with low, medium, or high-pressure systems, we ensure the hose can handle the required pressure without compromising performance. This provides safety and ensures the hose's integrity under varying operational conditions.
Color and Visibility
We offer customization of PVC braided hoses in a range of colors, including high-visibility options like bright yellow or orange. This customization helps improve safety by making the hoses easier to spot in hazardous environments. Enhanced visibility reduces the risk of accidents and makes hose identification quicker during maintenance or inspections.
|
Part No. |
Inch |
I.D.(mm) |
O.D.(mm) |
W.P.(bar) |
B.P.(bar) |
Length(m/roll) |
Weight(kg/roll) |
|
HD08 |
5/16" |
8 |
13.4 |
30 |
90 |
100 |
12.0 |
|
HD10 |
13/32" |
10 |
16.0 |
25 |
75 |
100 |
16.0 |
|
HD12 |
1/2" |
12 |
18.0 |
20 |
60 |
100 |
18.0 |
|
HD15 |
5/8" |
15 |
21.4 |
20 |
60 |
50 |
12.0 |
|
HD19 |
3/4" |
19 |
25.6 |
18 |
54 |
50 |
14.5 |
|
HD25 |
1" |
25 |
32.0 |
15 |
45 |
50 |
20.0 |
|
HD32 |
1-1/4" |
32 |
41.0 |
10 |
30 |
50 |
35.0 |
|
HD38 |
1-1/2" |
38 |
47.0 |
8 |
24 |
50 |
40.0 |
PVC Reinforced Hose
Durable Flexibility for Various Applications – PVC Reinforced Hose
Experience the perfect blend of strength, transparency, and lightweight flexibility with our PVC Reinforced Hose. Designed to cater to a wide range of applications, this hose is ideal for compressed air, water, gas, oil, and numerous chemical transfers. The clear PVC material ensures transparent visibility, allowing for easy monitoring of fluid flow, while the braided reinforcement provides standard pressure resistance. Its lightweight and flexible nature makes installation and reconfiguration a breeze.
