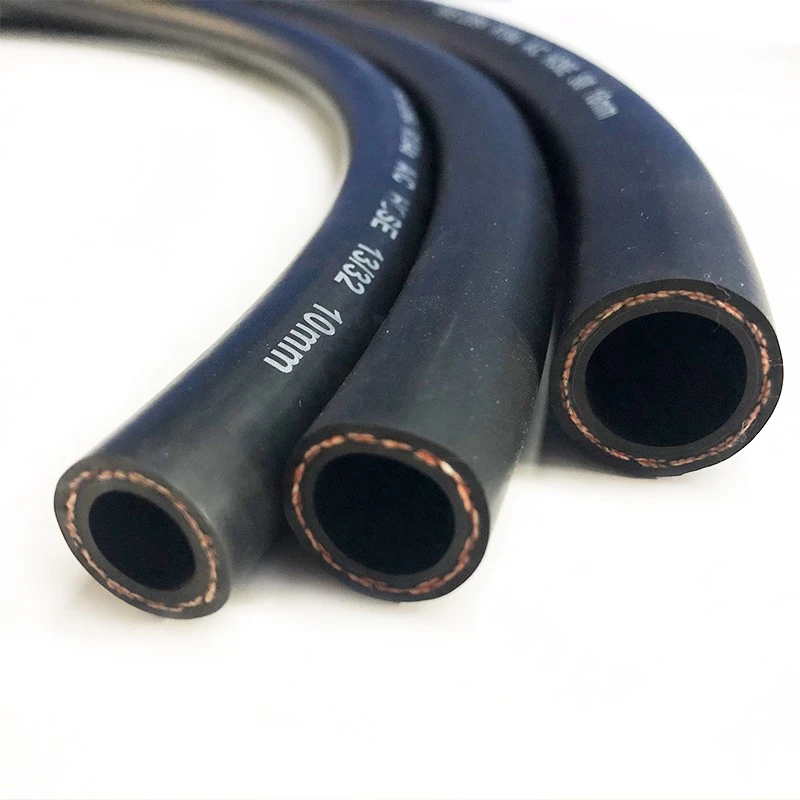

R404A Auto Air Condition Hose
Inner: PA
Middle layer: EPDM/CSM/IIR
Reinforcement: PET/PVA braided
Cover: Ozone, weather resistant EPDM
Temperature: -40°C + 135°C
Refrigerant Compatibility: R404a, R134a, R12, 1234yf
Feature: Low permeability, resistance for pulse, aging, ozone and shock.Designed for a variety of vehicles, ensuring excellent performance

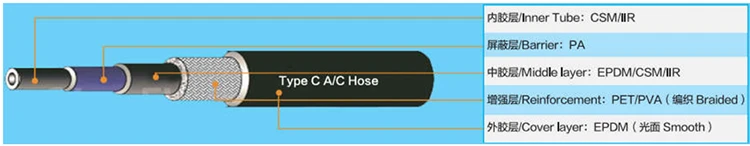

Type C Air Conditioning Hose
- Standard: SAE J2064
- Application Temperature: -40℃~+135℃
- Refrigerant: R134a, R12
- Features: Resistance to R134a R12 refrigerant, low permeability, pulse resistance, aging resistance, ozone resistance, vibration resistance, etc.
|
Type C A/C Hose (Thin Wall - A10) |
|||||
|
Specification |
Inner |
Outer |
Working Pressure |
Burst Pressure |
|
|
Diameter |
Diameter |
||||
|
Size |
inch |
mm |
mm |
Mpa |
Mpa |
|
#6 |
5/16" |
8 ± 0.4 |
15.2 ± 0.5 |
3.5 |
23 |
|
#8 |
7/16" |
11.5 ± 0.4 |
18.4 ± 0.5 |
3.5 |
22 |
|
#10 |
1/2" |
13 ± 0.4 |
21 ± 0.5 |
3.5 |
20 |
|
#12 |
5/8" |
15.5 ± 0.4 |
23 ± 0.5 |
3.5 |
21 |
|
Type C A/C Hose (Thick Wall - A20) |
|||||
|
Specification |
Inner |
Outer |
Working Pressure |
Burst Pressure |
|
|
Diameter |
Diameter |
||||
|
Size |
inch |
mm |
mm |
Mpa |
Mpa |
|
#6 |
5/16" |
8.2 ± 0.4 |
19 ± 0.5 |
3.5 |
21 |
|
#8 |
13/32" |
10.5 ± 0.4 |
23 ± 0.5 |
3.5 |
21 |
|
#10 |
1/2" |
13 ± 0.4 |
25.4 ± 0.5 |
3.5 |
22 |
|
#12 |
5/8" |
16 ± 0.4 |
28.6 ± 0.5 |
3.5 |
18 |
|
4890 A/C Hose (R134a) |
|||||
|
Specification |
Inner |
Outer |
Working Pressure |
Burst Pressure |
|
|
Diameter |
Diameter |
||||
|
Size |
inch |
mm |
mm |
Mpa |
Mpa |
|
#6 |
5/16" |
8.2 ± 0.4 |
14.7 ± 0.5 |
3.5 |
21 |
|
#8 |
13/32" |
10.5 ± 0.4 |
17.3 ± 0.5 |
3.5 |
21 |
|
#10 |
1/2" |
13 ± 0.4 |
19.4 ± 0.5 |
3.5 |
22 |
|
#12 |
5/8" |
16 ± 0.4 |
23.6 ± 0.5 |
3.5 |
18 |
Type E Air Conditioning Hose
- Standard: SAE J2064
- Application Temperature: -40℃~+135℃
- Refrigerant: R404a, R134a, R12, 1234yf
- Features: Resistance to R404a, R134a, R12, 1234yf refrigerant, low permeability, pulse resistance, aging resistance, ozone resistance, vibration resistance, etc.
Size and Performance Parameters of Type C A/C Hose
|
Specification |
Inner |
Outer |
Working Pressure |
Burst Pressure |
|
|
Diameter |
Diameter |
||||
|
mm |
inch |
mm |
mm |
Mpa |
Mpa |
|
8.2 |
5/16" |
8.2 ± 0.4 |
18.7 ± 0.5 |
3.5 |
20 |
|
10.5 |
13/32" |
10.5 ± 0.4 |
22.5 ± 0.5 |
3.5 |
23 |
|
13 |
1/2" |
13 ± 0.4 |
23 ± 0.5 |
3.5 |
22 |
|
16 |
5/8" |
16 ± 0.4 |
28 ± 0.5 |
3.5 |
21 |
|
8.2 |
5/16" |
8.2 ± 0.4 |
15.2 ± 0.5 |
3.5 |
23 |
|
10 |
13/32" |
10.2 ± 0.4 |
17.2 ± 0.5 |
3.5 |
22 |
|
10.5 |
13/32" |
10.5 ± 0.4 |
18.7 ± 0.5 |
3.5 |
22 |
|
11.5 |
7/16" |
11.5 ± 0.4 |
18.5 ± 0.5 |
3.5 |
23 |
|
13 |
1/2" |
13 ± 0.4 |
20.6 ± 0.5 |
3.5 |
22 |
|
13.2 |
1/2" |
13.2 ± 0.4 |
20.8 ± 0.5 |
3.5 |
22 |
|
15.2 |
5/8" |
15.2 ± 0.4 |
22.8 ± 0.5 |
3.5 |
20 |
|
15.5 |
5/8" |
15.5 ± 0.4 |
23.5 ± 0.5 |
3.5 |
20 |
|
19 |
3/4" |
19 ± 0.4 |
28.5 ± 0.5 |
3.5 |
18 |
|
(1234yf)/4860 A/C Hose (1234fy) |
|||||
|
Specification |
Inner |
Outer |
Working Pressure |
Burst Pressure |
|
|
Diameter |
Diameter |
||||
|
Size |
inch |
mm |
mm |
Mpa |
Mpa |
|
#6 |
5/16" |
8.2 ± 0.4 |
14.7 ± 0.5 |
3.5 |
21 |
|
#8 |
13/32" |
10.5 ± 0.4 |
17.3 ± 0.5 |
3.5 |
21 |
|
#10 |
1/2" |
13 ± 0.4 |
19.4 ± 0.5 |
3.5 |
22 |
|
#12 |
5/8" |
16 ± 0.4 |
23.6 ± 0.5 |
3.5 |
18 |
