Silicone Hose Reducer
2. silicone hose reducer
3. silicone hose reducer
4. silicone hose reducer
5. silicone hose reducer

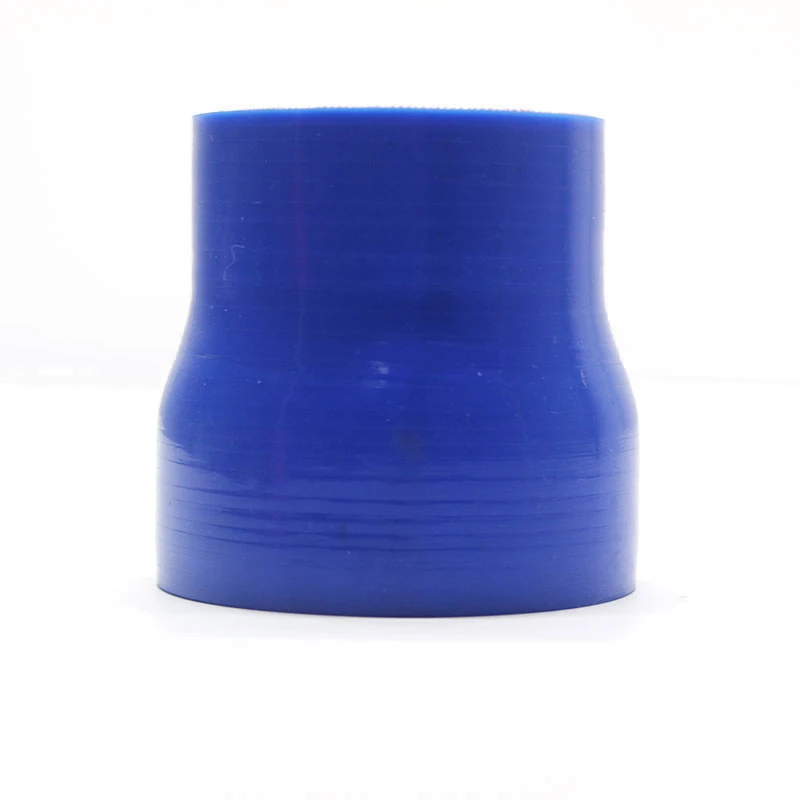

Silicone Hose Reducer

Name: silicone hose reducer
Color: Black, Red, Material: Silicone, Hose Type: Straight
Thickness: 5mm / 0.2",Inner Diameter: 114mm / 4.5"(ID), 127mm / 5"(ID), Outer Diameter: 124mm / 4.9"(OD), 137mm / 5.4"(OD), Length: 76mm / 3"
Working Temperature: -60 Degree Celsius to 260 Degree Celsius
Easy to install, direct replacement for the old or broken one.

Send Inquiry

Product Introduction

Premium Silicone Hose Reducer

Engineered for Seamless Diameter Transition Under High Pressure

Our silicone reducer hoses are custom-engineered for connecting automotive piping of different sizes while maintaining optimal fluid aerodynamics and structural rigidity. They are the ideal choice for high-boost turbochargers, intercoolers, and radiator air intake systems.

Smooth Transition: Conical shape reduces air turbulence and pressure drops.
Multi-Ply Reinforcement: 3 to 5 layers of high-tensile premium polyester or aramid fabric layers.
Extreme Environmental Tolerance: Outstanding resistance to high heat, UV, ozone, and oil mist.

Our Premium Standards

How our factory delivers top-tier OEM automotive components:

100% Virgin VMQ Silicone: No recycled rubber fillers. Stays flexible and resists cracking for over 5 years.
Strict Wall Thickness Control: Uniform transition thickness prevents localized "ballooning" under high boost.
Meticulous Hand-Wrapped Craftsmanship: Ensures optimal interlocking of fabric mesh with zero delamination.

Inside Diameter		Outside Diameter		Overall Length	Burst Pressure - PSI		Weight
Inch	MM	Inch	MM	Inches	SAE J20 R1	TMC	LBS
1.00/1.25	25/32	1.39/1.64	35/42	6	275	125	0.5
1.00/1.50	25/38	1.39/1.89	35/48	6	250	125	0.5
1.00/1.75	25/44	1.39/2.14	35/54	6	225	125	0.5
1.00/2.00	25/51	1.39/2.39	35/61	6	200	100	0.5
1.25/2.00	32/51	1.64/2.39	42/61	6	200	100	0.5
1.50/2.00	38/51	1.89/2.39	48/61	6	200	100	0.5
1.75/2.00	44/51	2.14/2.39	54/61	6	200	100	0.5
2.00/2.25	51/57	2.39/2.64	61/67	6	175	100	0.5
2.00/2.50	51/64	2.39/2.89	61/73	6	150	100	0.5
2.00/2.75	51/70	2.39/3.14	61/80	6	125	100	0.5
2.00/3.00	51/76	2.39/3.39	61/86	6	100	100	0.5
2.25/2.50	57/64	2.64/2.89	67/73	6	150	100	0.5
2.25/2.75	57/70	2.64/3.14	67/80	6	125	100	0.5
2.25/3.00	57/76	2.64/3.39	67/86	6	100	100	0.5
2.50/2.75	64/70	2.89/3.14	73/80	6	125	100	0.5
2.50/3.00	64/76	2.89/3.39	73/86	6	100	100	0.5
2.50/3.50	64/89	2.89/3.89	73/99	6	75	100	0.5
2.75/3.00	70/76	3.14/3.39	80/86	6	100	100	0.5
3.00/3.50	76/89	3.39/3.89	86/99	6	75	100	0.5
3.00/4.00	76/102	3.39/4.39	86/112	6	50	100	0.5
3.50/4.00	89/102	3.89/4.39	99/112	6	50	100	0.5
4.00/5.00	102/127	4.39/5.39	112/137	6	N/A	N/A	0.5

Versatile Applications & Complete Assembly

Our reducer sleeves are trusted globally across diverse high-performance sectors, including racing air intakes, heavy-duty trucks, buses, and agricultural machinery cooling loops.

One-Stop Sourcing: Save Your Time & Assembly Cost

We do not just sell standalone hoses. We provide full Hose Assembly Services based on your CAD drawings, integrating custom Banjo Fittings and Crimping Sleeves into a finished, pressure-tested component.
