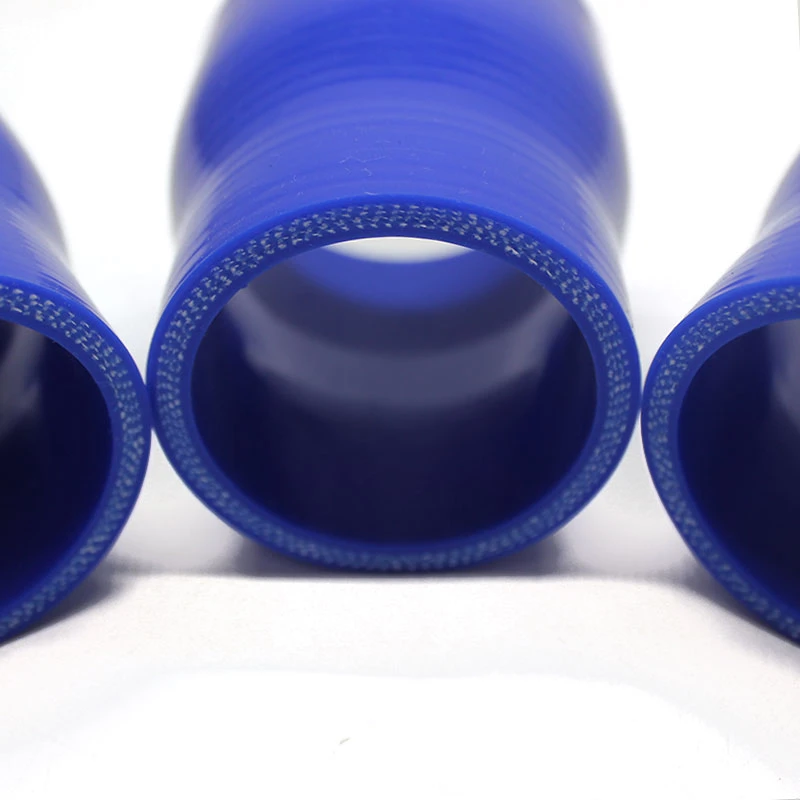

Silicone Reducer
Tube: 100% High quality silicone
Reinforcement: Four ply polyester/aramid fabric
Cover: Silicone
Color: Red, blue, green, yellow, black
Temperature: -40℃ to +220℃ (-40℉ to +428℉)
Silicone reducer straight in various sizes
Highest quality!
High-Quality HeroDura products silicone hose with reinforced fabric layers
This HeroDura products silicone hose is a charge air hose made from silicone, reinforced with fabric to remain extremely pressure-resistant and vacuum-resistant. These hoses are suitable for charge air lines, intakes, water lines, and similar applications. They are pressure-resistant up to 5 bar and temperature-resistant up to 220°C. Not suitable for gasoline or oil lines!
Temperature Range: -40°C to 220°C
Pressure Resistant Up To: at least 5 bar
After many tests, we deliver the best quality at the best price! Our HeroDura products silicone hoses have consistently matched and even surpassed the quality of the most well-known manufacturer of silicone hoses in quality tests. Our silicone is very durable and remains flexible, stable, and colorfast even after years. Many well-known companies in the tuning and motorsport sectors rely on silicone hoses from our company. Trust in our quality as well!
HeroDura products silicone hoses up to 38mm have 3 textile layers and a wall thickness of 4.3mm. From 41mm onwards, they have 4 layers with a wall thickness of 5.3mm. They come with a small, discreet HeroDura products logo, which seals the quality of the hoses.
Size Chart / Silicone Reducer Straight
|
ID (mm) |
ID reduziert (mm) |
Wandstärke (mm) |
Länge (mm) |
Länge A (mm) |
Länge B (mm) |
Berstdruck (Bar) |
Textillagen |
|
16 |
13 |
4 |
100 |
40 |
40 |
25,9 |
3 |
|
19 |
13 |
4 |
100 |
40 |
40 |
22,4 |
3 |
|
19 |
16 |
4 |
100 |
40 |
40 |
22,4 |
3 |
|
22 |
16 |
4 |
100 |
40 |
40 |
22,4 |
3 |
|
22 |
19 |
4 |
100 |
40 |
40 |
22,4 |
3 |
|
28 |
22 |
4 |
100 |
40 |
40 |
20,6 |
3 |
|
28 |
25 |
4 |
100 |
40 |
40 |
20,6 |
3 |
|
32 |
25 |
4 |
100 |
40 |
40 |
19 |
3 |
|
32 |
28 |
4 |
100 |
40 |
40 |
19 |
3 |
|
35 |
25 |
4 |
100 |
40 |
40 |
19 |
3 |
|
35 |
28 |
4 |
100 |
40 |
40 |
19 |
3 |
|
35 |
32 |
4 |
100 |
40 |
40 |
19 |
3 |
|
38 |
22 |
4 |
100 |
40 |
40 |
17,2 |
3 |
|
38 |
25 |
4 |
100 |
40 |
40 |
17,2 |
3 |
|
38 |
28 |
4 |
100 |
40 |
40 |
17,2 |
3 |
|
38 |
32 |
4 |
100 |
40 |
40 |
17,2 |
3 |
|
38 |
35 |
4 |
100 |
40 |
40 |
17,2 |
3 |
|
40 |
35 |
5 |
100 |
40 |
40 |
17,2 |
4 |
|
45 |
32 |
5 |
100 |
40 |
40 |
15,5 |
4 |
|
45 |
38 |
5 |
100 |
40 |
40 |
15,5 |
4 |
|
51 |
38 |
5 |
100 |
40 |
40 |
13,8 |
4 |
|
51 |
45 |
5 |
100 |
40 |
40 |
13,8 |
4 |
|
54 |
51 |
5 |
100 |
40 |
40 |
12,1 |
4 |
|
57 |
51 |
5 |
100 |
40 |
40 |
12,1 |
4 |
|
60 |
45 |
5 |
100 |
40 |
40 |
12,1 |
4 |
|
60 |
50 |
5 |
100 |
40 |
40 |
12,1 |
4 |
|
60 |
55 |
5 |
100 |
40 |
40 |
12,1 |
4 |
|
63 |
51 |
5 |
100 |
40 |
40 |
10,3 |
4 |
|
63 |
60 |
5 |
100 |
40 |
40 |
10,3 |
4 |
|
65 |
60 |
5 |
100 |
40 |
40 |
10,3 |
4 |
|
70 |
50 |
5 |
100 |
40 |
40 |
8,6 |
4 |
|
70 |
57 |
5 |
100 |
40 |
40 |
8,6 |
4 |
|
70 |
60 |
5 |
100 |
40 |
40 |
8,6 |
4 |
|
70 |
63 |
5 |
100 |
40 |
40 |
8,6 |
4 |
|
76 |
51 |
5 |
100 |
40 |
40 |
6 |
4 |
|
76 |
60 |
5 |
100 |
40 |
40 |
6 |
4 |
|
76 |
63 |
5 |
100 |
40 |
40 |
6 |
4 |
|
76 |
67 |
5 |
100 |
40 |
40 |
6 |
4 |
|
80 |
60 |
5 |
100 |
40 |
40 |
6 |
4 |
|
80 |
70 |
5 |
100 |
40 |
40 |
6 |
4 |
|
80 |
76 |
5 |
100 |
40 |
40 |
5,2 |
4 |
|
89 |
63 |
5 |
100 |
40 |
40 |
5,2 |
4 |
|
89 |
76 |
5 |
100 |
40 |
40 |
5,2 |
4 |
|
89 |
80 |
5 |
100 |
40 |
40 |
5,2 |
4 |
|
102 |
76 |
5 |
100 |
40 |
40 |
3,4 |
4 |
|
102 |
80 |
5 |
100 |
40 |
40 |
3,4 |
4 |
|
102 |
89 |
5 |
100 |
40 |
40 |
3,4 |
4 |
|
127 |
100 |
5 |
100 |
40 |
40 |
3,4 |
4 |
Advantages of HeroDura Silicone Reducer
|
Product Features |
Customer Benefits |
|
Temperature Resistant up to 220°C |
Stable performance in high-heat environments |
|
Reinforced Polyester Construction |
Increased burst strength and pressure resistance |
|
Smooth Inner Surface |
Improved airflow efficiency and reduced turbulence |
|
UV & Ozone Resistant |
Longer service life for outdoor applications |
|
Custom Colors Available |
Supports OEM branding and aftermarket projects |
|
Excellent Aging Resistance |
Lower maintenance and replacement costs |
Compared with conventional rubber connectors, HeroDura Silicone Reducer products provide better durability, superior flexibility, and enhanced resistance to cracking, deformation, and environmental exposure.
