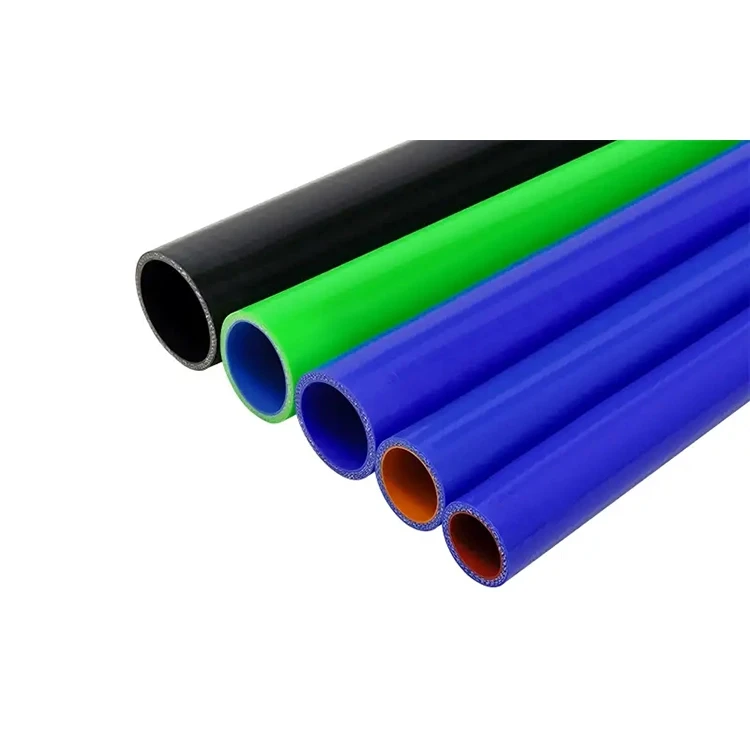

2 Inch Silicone Hose
Polyester - Standard Build (-40°C - 170°C)
Nomex - High Temp Build (-40°C - 220°C Made To Order)
Fluoro Lined - Oil and Fuel Resistant Liner (-40°C - 170°C Made To Order)
We stock the following sizes with our Fluoro Liner:
8mm 10mm 13mm 16mm 19mm 25mm 32mm 35mm 38mm

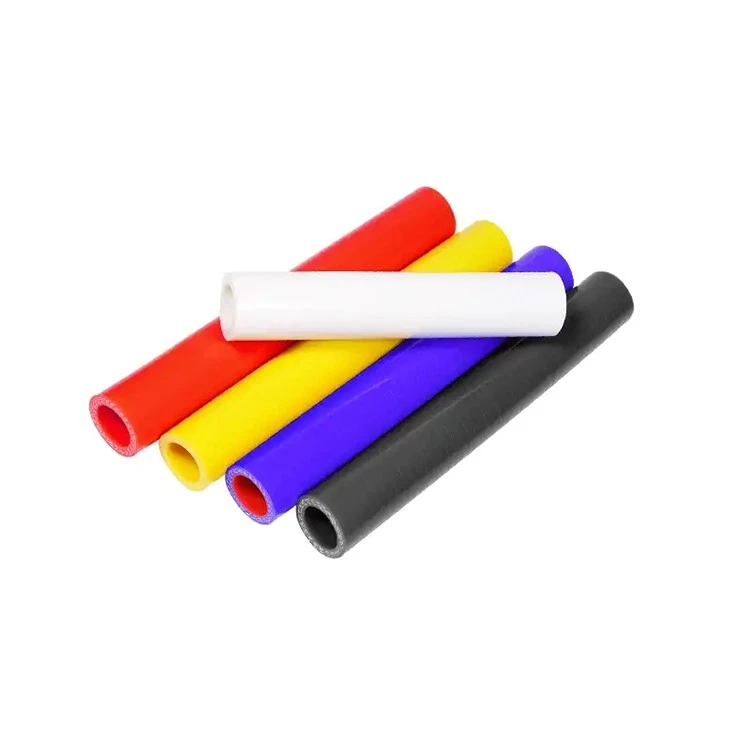

Auto Straight Silicone Hose Construction
Constructed from high-temperature resistant silicone rubber and reinforced with multiple layers of knitted premium polyester fabric, our hose maintains durability across extreme temperatures and varying pressure ranges.
Silicone rubber outperforms organic materials with extended service life, even under conditions that cause conventional parts to degrade. Key characteristics include:
- High temperature, electrochemical, UV, and ozone resistance.
- Standard silicone is not oil-resistant; however, our fluorosilicone variant resists fuels, oils, and solvents including gasoline
- Excellent water resistance with minimal moisture absorption and mechanical property change, even after prolonged immersion.
Auto Silicone Hose Specification
|
ID |
Layer |
Thickness |
Length |
ID |
Layer |
Thickness |
Length |
||
|
inch |
mm |
ply |
mm |
mm |
inch |
mm |
ply |
mm |
mm |
|
1/4" |
6 |
3-4 |
4-4.5 |
1000 |
1-1/2" |
38 |
4 |
4.5-5 |
1000 |
|
5/16" |
8 |
3-4 |
4-4.5 |
1000 |
1-3/4" |
45 |
4 |
4.5-5 |
1000 |
|
3/8" |
10 |
3-4 |
4-4.5 |
1000 |
2" |
51 |
4 |
4.5-5 |
1000 |
|
1/2" |
12 |
3-4 |
4-4.5 |
1000 |
2-1/4" |
57 |
4 |
4.5-5 |
1000 |
|
5/8" |
16 |
3-4 |
4-4.5 |
1000 |
2-1/2" |
63 |
4 |
4.5-5 |
1000 |
|
3/4" |
19 |
3-4 |
4-4.5 |
1000 |
2-3/4" |
70 |
4 |
4.5-5 |
1000 |
|
1" |
25 |
4 |
4.5-5 |
1000 |
3" |
76 |
4 |
4.5-5 |
1000 |
|
1-1/4" |
32 |
4 |
4.5-5 |
1000 |
3-1/2" |
89 |
4 |
4.5-5 |
1000 |
|
1-3/8" |
35 |
4 |
4.5-5 |
1000 |
4" |
102 |
4 |
4.5-5 |
1000 |
Characteristic
High and low temperature resistance. Silicone tubes can still maintain good flexibility and elasticity in high temperature environments, and will not deform or age. Generally, they can be used in a temperature range of -40℃~200℃. Silicone tubes do not harden, crack, or age in low temperature environments, and have good impact resistance.
Excellent insulation performance. Silicone hose has good electrical resistance and insulation performance, which can prevent electricity.
Excellent corrosion resistance. Silicone hose has excellent physical and chemical resistance and is not easy to corrode and be damaged.
Application
T shape silicone hoses are widely used in the automotive industry, mainly for the transmission of various liquids and gases in various parts such as engine systems, cooling systems, fuel supply systems and exhaust systems. These are also used in construction machinery and agricultural machinery.
Precautions
It should be noted that although silicone tubes have good temperature resistance and corrosion resistance, they also need to be replaced regularly to ensure the normal operation of the automotive system.
In addition, when purchasing silicone hoses, you should choose products from regular manufacturers to ensure quality, and choose the corresponding silicone tube model and specifications according to the vehicle model and use environment to ensure compatibility and stability with the automotive system.
