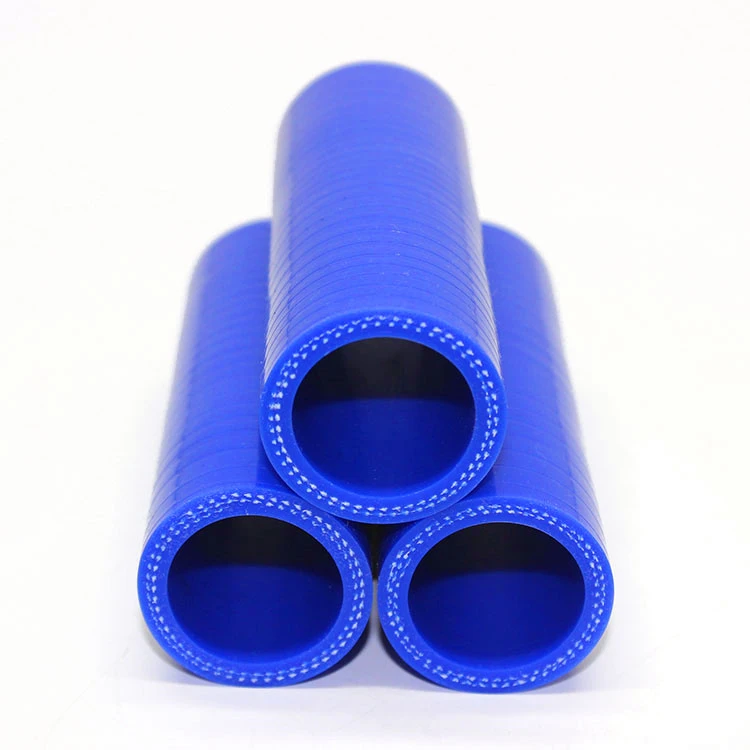

Silicone Hose Coupler

These standard silicone couplers typically measure 76mm in length, though custom diameters and lengths are also available. Designed to save installation space, they are primarily used in automotive modifications, industrial piping connections, and fluid handling machinery.

Specific applications and functions include:

Automotive Intake Systems: Widely used for heating and cooling systems, CAC charge-air-cooler (hot & cold side), turbo charger systems & custom compressor, intercooler or intake & inlet piping for turbo/superchargers. etc.. Shorter segments serve to connect various components, acting as transitional and cushioning elements.

Cooling and Heat Dissipation Systems: Used to connect automotive water tanks, radiators, or industrial cooling circulation systems; the silicone material's high-temperature and aging resistance makes it ideal for such demanding environments.

Fluid Machinery and Vibration Damping: Thanks to the excellent flexibility and elasticity of silicone, these connectors are frequently used with engines or vibrating machinery to prevent rigid pipes from cracking due to vibration.

Silicone turbo couplers are flexible connectors made of medical or food-grade silicone. They feature a bellows-style design that allows them to flex and absorb vibrations. These couplers can connect piping with offset axes, compensate for expansion and contraction, and isolate vibrations and noise. They are available with flange or hose barb connections, in straight, stepped, or tapered reducer styles, and are rated for continuous use at temperatures between -80 to 300 degrees Fahrenheit.

The main differences between silicone reducer couplers and silicone turbo couplers are:

• Silicone reducer couplers have a tapered shape to connect pipes of different sizes, while silicone turbo couplers typically have a straight shape to connect pipes of the same size.
• Silicone reducer couplers often have hose barb connections to join hoses and tubes of different diameters, while silicone turbo couplers typically have flange connections to join rigid pipes.
• Though both are flexible, silicone turbo couplers tend to be more flexible to better absorb vibrations from engines, while silicone reducer couplers are generally for industrial and commercial applications to transition between different pipe sizes.
