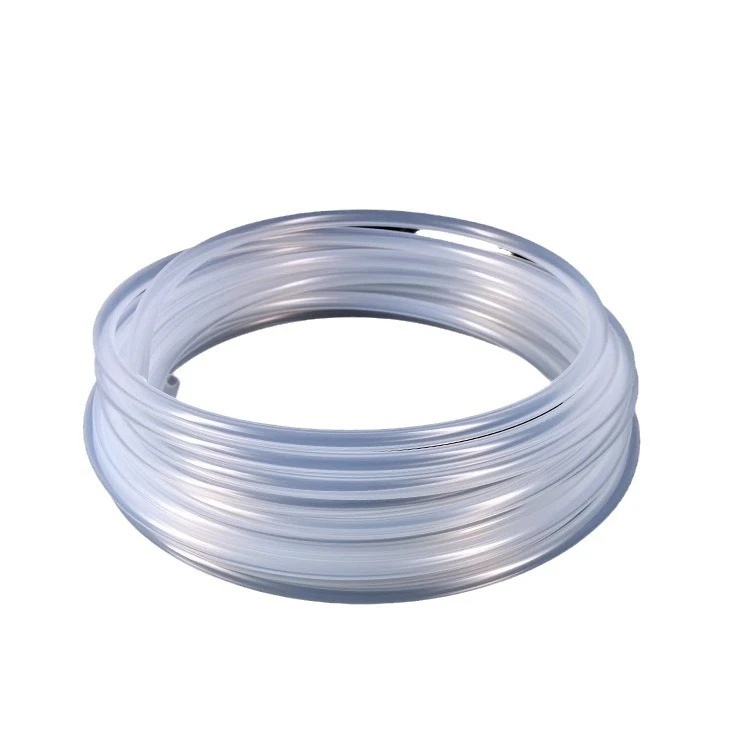

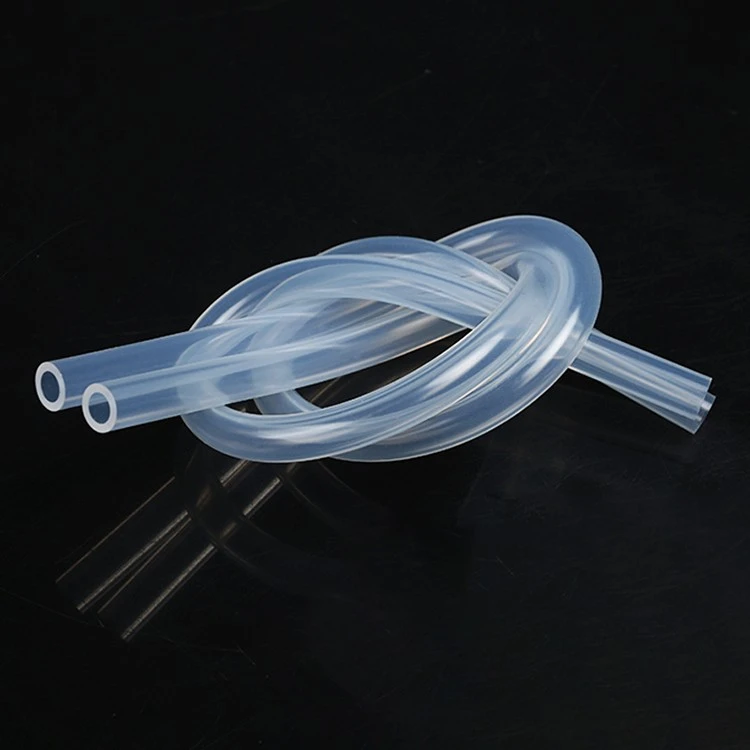

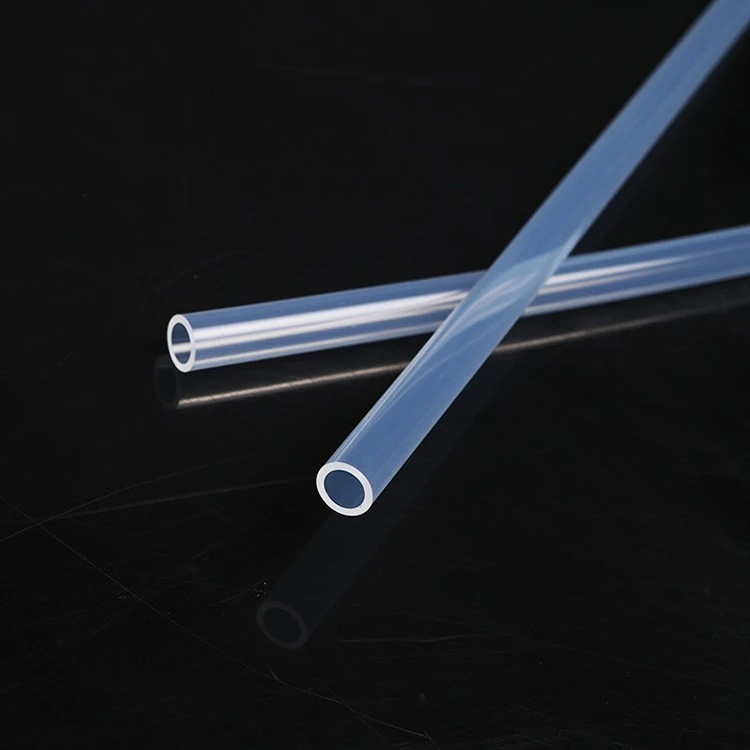

Clear Silicone Tubing
Material: Food Silicone
Color: transparent, translucent, and any pantone color
Diameter: 1-30mm
Tensile Strength : 6-8Mpa
Hardness : 50~70 shore A
Packing Size: Packing Length: 100-200 meter /roll, or customized (1 to xxx meter)
|
|
|
|
|
Applications |
Benefits |
Specifications |
|
Transfer Lines Filling Cell media processing Bioreactor process lines Production filtration and fermentation Diagnostics and laboratory testing |
Improved pressure rating Excellent clarity Kink resistant Bio-compatible Extensive extractables testing Gamma-irradiation & autoclave compatible Good chemical resistance Safe disposal through incineration |
Platinum-cured silicone Higher pressure ratings Hardness: durometer 61 Shore A Tasteless, odorless, noncytotoxic, and nonhemolytic Contains no phthalate plasticizers or peroxides that can leach out into transported fluid Low-binding surface minimizes absorption of proteins and food products |

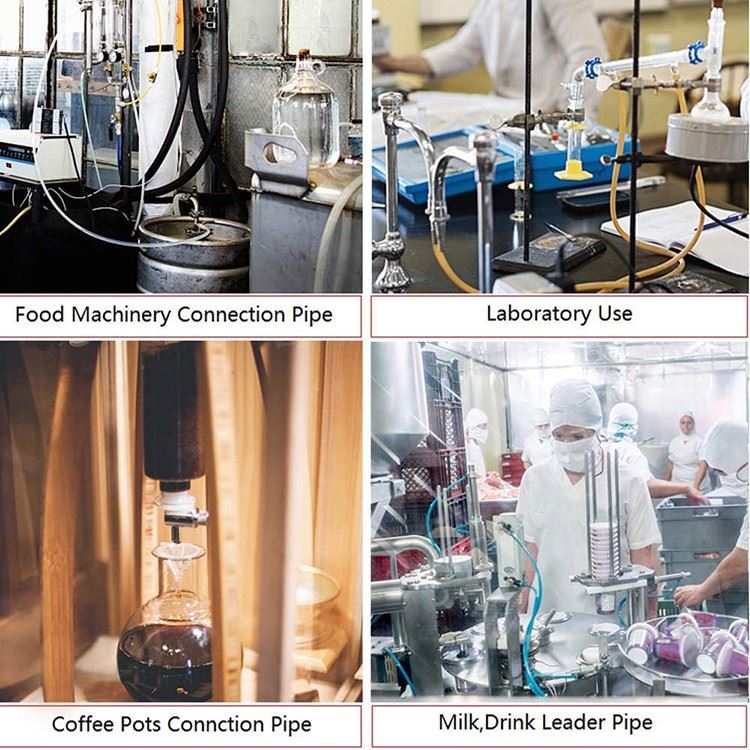

Applications of flexible silicone tubes
They are commonly used in industries such as medical, pharmaceutical, food and beverage, automotive, and engineering. Some typical applications of flexible silicone hoses include:
Medical and Healthcare: Flexible silicone tubes are biocompatible, non-toxic, and can withstand sterilization processes, which are widely used in medical and healthcare settings for applications like fluid transfer, drainage systems, catheters, and prosthetics.
Food and Beverage Industry: Flexible silicone hoses are resistant to high temperatures and do not leach harmful substances into the food or beverages. So they are utilized in food and beverage processing for applications such as beverage dispensing, food transfer, and filling lines.
Laboratory and Scientific Research: They are used in laboratories for transferring liquids, gases, or chemicals. They can withstand a wide range of temperatures and are compatible with many chemicals commonly used in scientific research.
Automotive and Engineering: Such as coolant and fuel lines, vacuum lines, and electrical insulation. They offer flexibility and resistance to automotive fluids, oils, and high temperatures.
Medical Grade Silicone Tubing – Standard Sizes
|
Item # |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
Tolerance (ID) |
Tolerance (Thickness) |
Available Length per coil (meter) |
|
HD-051 |
0.5 |
1.2 |
0.4 |
±0.05 |
±0.05 |
30, 50, 100 |
|
|
HD-0515 |
0.5 |
1.5 |
0.5 |
±0.05 |
±0.05 |
30, 50, 100 |
|
|
HD-052 |
0.5 |
2.0 |
0.8 |
±0.05 |
±0.05 |
30, 50, 100 |
|
|
HD-0819 |
0.8 |
1.9 |
0.6 |
±0.05 |
±0.05 |
30, 50, 100 |
|
|
HD-12 |
1.0 |
2.0 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
|
HD-13 |
1.0 |
3.0 |
1.0 |
±0.10 |
±0.05 |
30, 50, 100 |
|
|
HD-1525 |
1.5 |
2.5 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
|
HD-23 |
2.0 |
3.0 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
|
HD-24 |
2.0 |
4.0 |
1.0 |
±0.10 |
±0.05 |
30, 50, 100 |
|
|
HD-2564 |
2.5 |
6.4 |
2.0 |
±0.10 |
±0.10 |
30, 50, 100 |
|
|
HD-34 |
3.0 |
4.0 |
0.5 |
±0.10 |
±0.10 |
30, 50, 100 |
|
|
HD-47 |
4.0 |
7.0 |
1.5 |
±0.10 |
±0.10 |
30, 50, 100 |
|
|
HD-57 |
5.0 |
7.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
|
|
HD-68 |
6.0 |
8.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
|
|
HD-79 |
7.0 |
9.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
|
|
HD-810 |
8.0 |
10.0 |
1.0 |
±0.20 |
±0.10 |
30, 50 |
|
|
HD-912 |
9.0 |
12.0 |
1.5 |
±0.20 |
±0.10 |
30, 50 |
|
|
HD-1013 |
10.0 |
13.0 |
1.5 |
±0.20 |
±0.10 |
30, 50 |
|
|
HD-1216 |
12.0 |
16.0 |
2.0 |
±0.20 |
±0.10 |
30, 50 |
|
|
HD-1418 |
14.0 |
18.0 |
2.0 |
±0.25 |
±0.15 |
30, 50 |
|
|
HD-1620 |
16.0 |
20.0 |
2.0 |
±0.30 |
±0.15 |
30, 50 |
|
|
HD-1925 |
19.0 |
25.0 |
3.0 |
±0.35 |
±0.20 |
30, 50 |
|
|
HD-2531 |
25.0 |
31.0 |
3.0 |
±0.60 |
±0.30 |
30, 50 |
Our full range of silicone dairy tubing products are platinum cured. This gives it key advantages over other tubing compounds. It is non-toxic and contains no peroxide by products, which ensures that the tubing is non-yellowing during use. It also features strength as well as offer good tear resistance. Our silicone dairy tubing won't harden or corrode after use, which gives you far superior use out of a single tube. It can also improve flow rates and hygiene levels due to the extra smooth inner bore.
