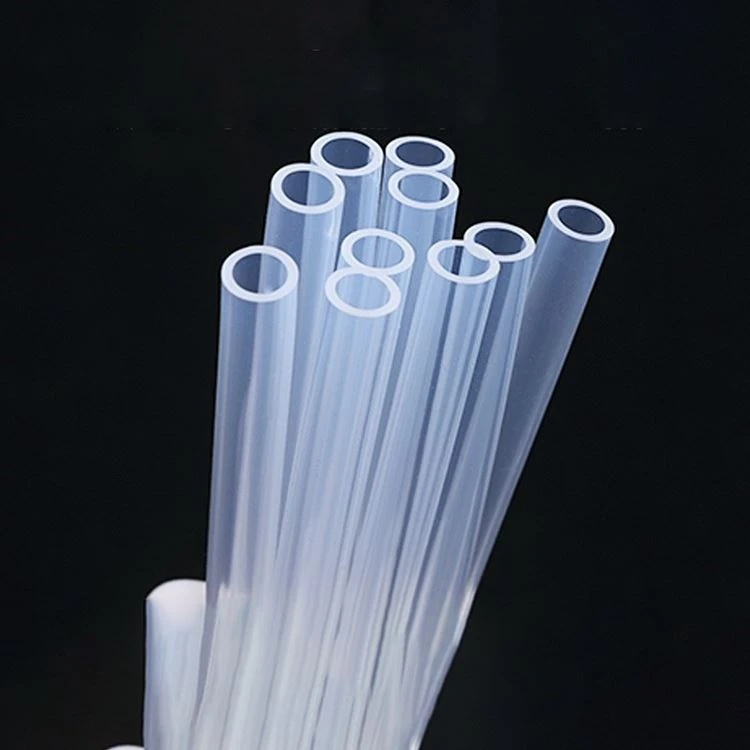

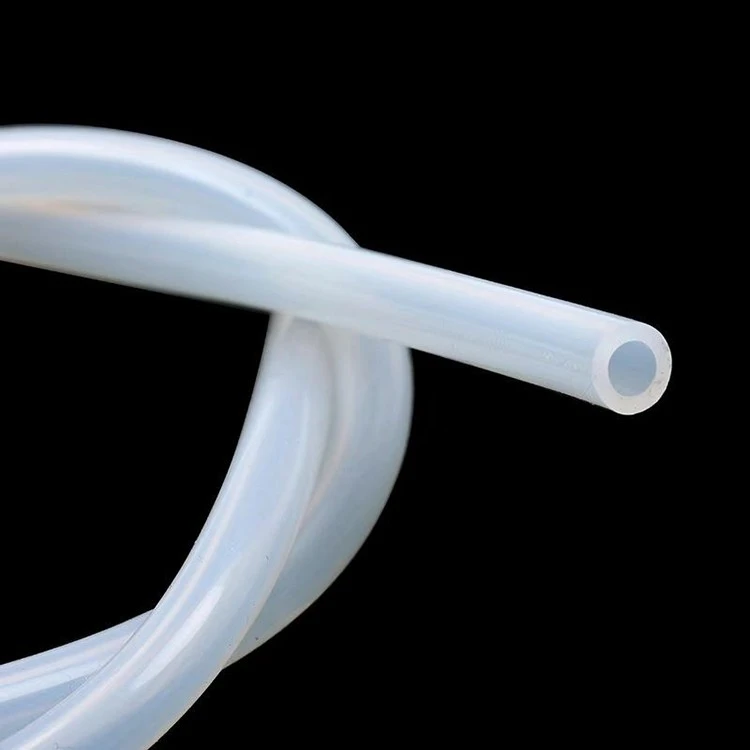

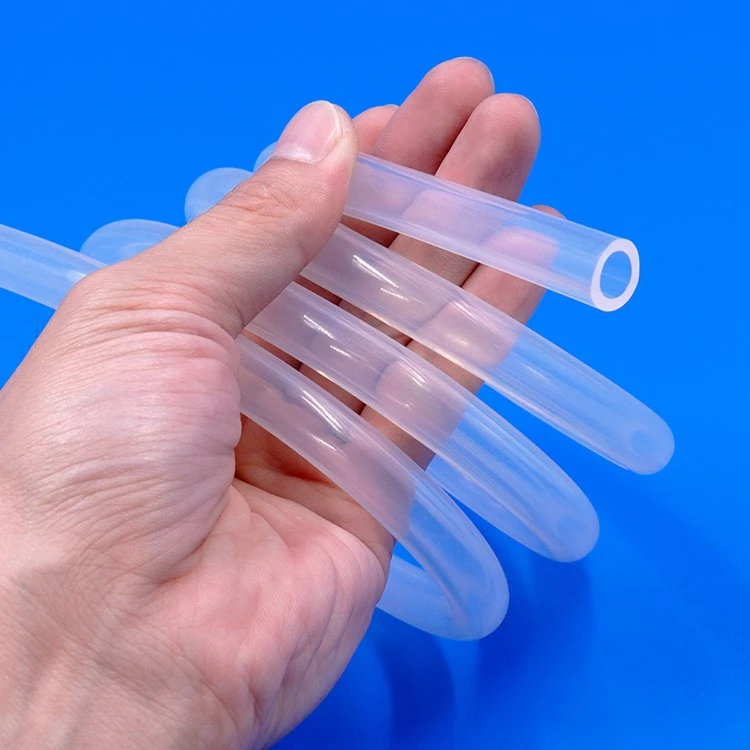

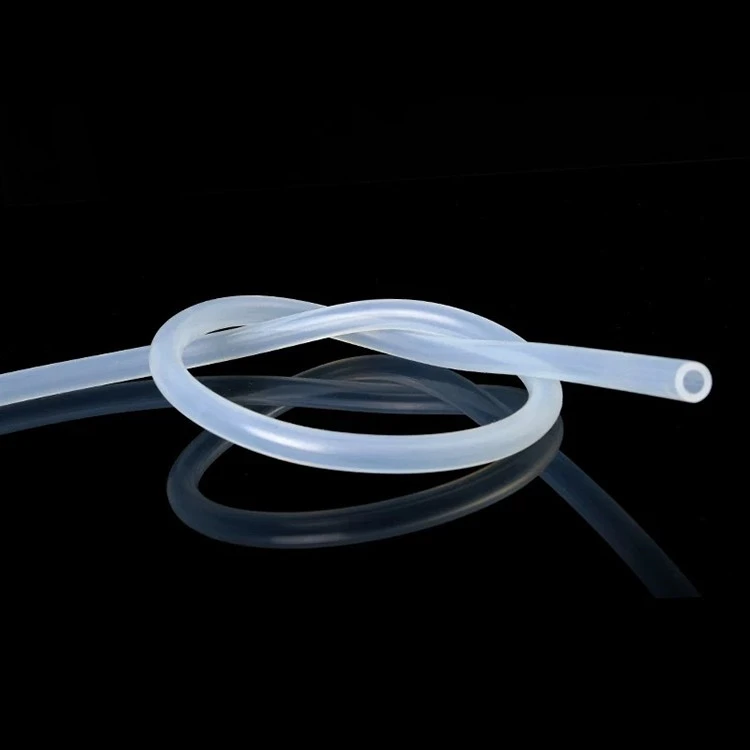

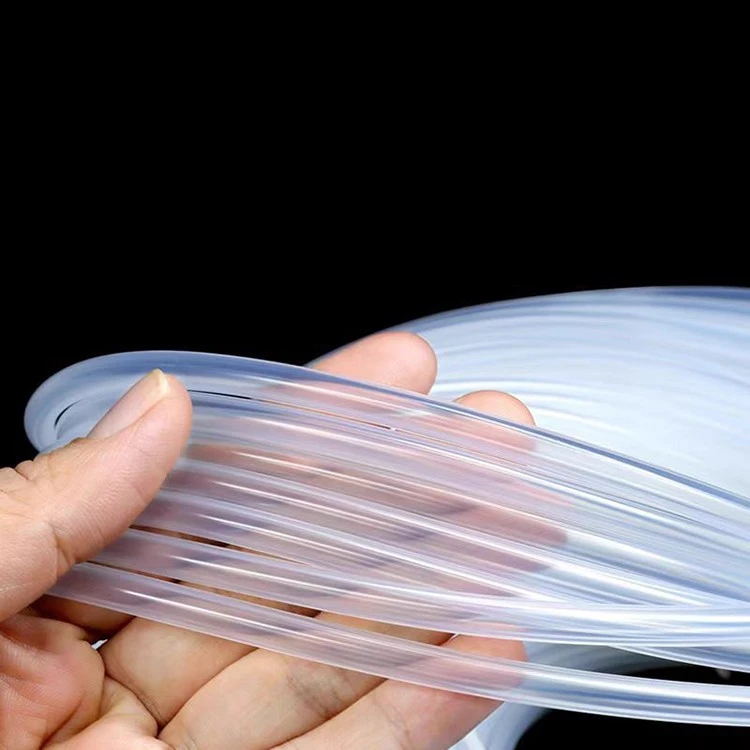

4MM Silicone Vacuum Hose
Manufactured from high tear strength silicone polymer
Flexible, durable and resistant to ageing
Supplied in convenient 3 metre lengths
65 Shore hardness silicone construction
Manufactured under ISO 9001 quality system
Extrusion medical food grade flexible silicone Rubber Tube
Product Description
Flexible silicone hose performance
1.High and low temperature resistance,can be used for a long time under 180 ºC ,under 60 ºC still elastic
2.Eelectric insulation performance :the dielectric properties of the silicone tube is wonderful , especially the dielecric properties of high temperature organic rubber,considerably more than the general dielectric strength within 20-180 ºC is almost not affected by temperature
3.Excellent weather resistance,resistant to ozone and ultraviolet light resistance,long-term use does not occur crack in ourdoor.generally considered the silicone tube can be used in outdoor more than 20 years.
Medical Grade Silicone Tubing – Standard Sizes
|
Item # |
ID (mm) |
OD (mm) |
Thickness (mm) |
Tolerance (ID) |
Tolerance (Thickness) |
Available Length per coil (meter) |
|
HD-051 |
0.5 |
1.2 |
0.4 |
±0.05 |
±0.05 |
30, 50, 100 |
|
HD-0515 |
0.5 |
1.5 |
0.5 |
±0.05 |
±0.05 |
30, 50, 100 |
|
HD-052 |
0.5 |
2.0 |
0.8 |
±0.05 |
±0.05 |
30, 50, 100 |
|
HD-0819 |
0.8 |
1.9 |
0.6 |
±0.05 |
±0.05 |
30, 50, 100 |
|
HD-12 |
1.0 |
2.0 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
HD-13 |
1.0 |
3.0 |
1.0 |
±0.10 |
±0.05 |
30, 50, 100 |
|
HD-1525 |
1.5 |
2.5 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
HD-23 |
2.0 |
3.0 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
HD-24 |
2.0 |
4.0 |
1.0 |
±0.10 |
±0.05 |
30, 50, 100 |
|
HD-2564 |
2.5 |
6.4 |
2.0 |
±0.10 |
±0.10 |
30, 50, 100 |
|
HD-34 |
3.0 |
4.0 |
0.5 |
±0.10 |
±0.10 |
30, 50, 100 |
|
HD-47 |
4.0 |
7.0 |
1.5 |
±0.10 |
±0.10 |
30, 50, 100 |
|
HD-57 |
5.0 |
7.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
|
HD-68 |
6.0 |
8.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
|
HD-79 |
7.0 |
9.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
|
HD-810 |
8.0 |
10.0 |
1.0 |
±0.20 |
±0.10 |
30, 50 |
|
HD-912 |
9.0 |
12.0 |
1.5 |
±0.20 |
±0.10 |
30, 50 |
|
HD-1013 |
10.0 |
13.0 |
1.5 |
±0.20 |
±0.10 |
30, 50 |
|
HD-1216 |
12.0 |
16.0 |
2.0 |
±0.20 |
±0.10 |
30, 50 |
|
HD-1418 |
14.0 |
18.0 |
2.0 |
±0.25 |
±0.15 |
30, 50 |
|
HD-1620 |
16.0 |
20.0 |
2.0 |
±0.30 |
±0.15 |
30, 50 |
|
HD-1925 |
19.0 |
25.0 |
3.0 |
±0.35 |
±0.20 |
30, 50 |
|
HD-2531 |
25.0 |
31.0 |
3.0 |
±0.60 |
±0.30 |
30, 50 |
Application of flexible silicone hose
Food flexible silicone hose:food machine connecting pipe,baby bottle straws'catheters;water dispensers,coffee pot,water heater,electric rice cooker's the connection pipe,tube;electrical instruments'casing;
Medical flexible silicone hose: medical equipment connection pipe,etc.
Features of flexible silicone hose
1.wonderful flexibility,resistance to deformation
2.high resistance to tear strength
3.high transparency,tasteless,non-toxic.
4.resistanct to high and low temperature,long service life.
5.long time using the same hard,no changes in color,do not spray frost.
6.low in protein binding power.
Medical grade silicone tubes are widely recognized as the gold standard for high-purity fluid transfer in healthcare and pharmaceutical environments. Our medical grade silicone tube solutions are manufactured using premium platinum-cured materials to ensure superior biocompatibility, flexibility, and durability.
Designed to meet strict regulatory requirements, our medical silicone tubing complies with FDA and USP Class VI standards, making it ideal for critical applications such as drug delivery systems, peristaltic pumps, and surgical devices.
Compared to conventional tubing materials, silicone tubing for medical use offers excellent temperature resistance, chemical stability, and long service life, ensuring reliable performance in demanding environments.
